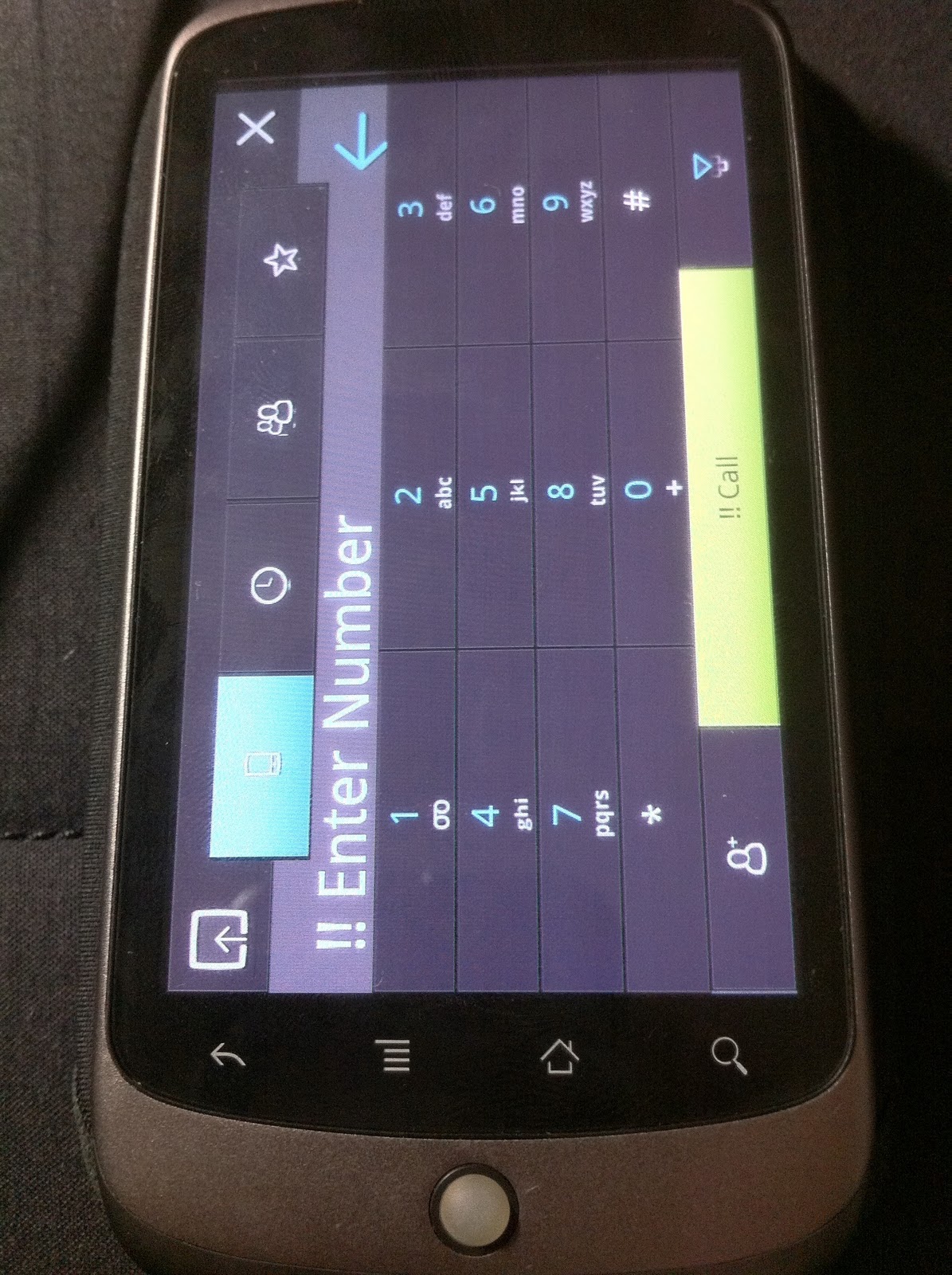

Updated on 20101107(kernel build, kickstart file, dialer screenshot, fdisk /dev/mmcblk0)
Part2. Single boot: http://blog.mitsutaka.org/2010/11/meego-11-for-nexusone-status-part2-and.html
As you know, MeeGo could be worked on the NexusOne. It was v1.1 development release that time. Then I tried if MeeGo 1.1 final release could work on it. Of course, It could be work. and We’ve made it more responsive to running.
- Linux kernel
zImage is loaded from PC via fastboot command. It uses the Android kernel for MSM. This tree is tagged “android-msm-2.6.29-nexusone”. We can use it. android-msm-2.6.32, android-msm-2.6.35 branches could be worked. Here is case of android-msm-2.6.32
$ git clone git://android.git.kernel.org/kernel/msm.git -b android-msm-2.6.32 android-msm-2.6.32
$ cd android-msm-2.6.32
Then We use a mahimahi_defconfig using as the base kernel configuration.
$ cp arch/arm/configs/mahimahi_defconfig .config
And customize it. When it boots via fastboot, we don’t need initrd.
-CONFIG_BLK_DEV_INITRD=y
+# CONFIG_BLK_DEV_INITRD is not set

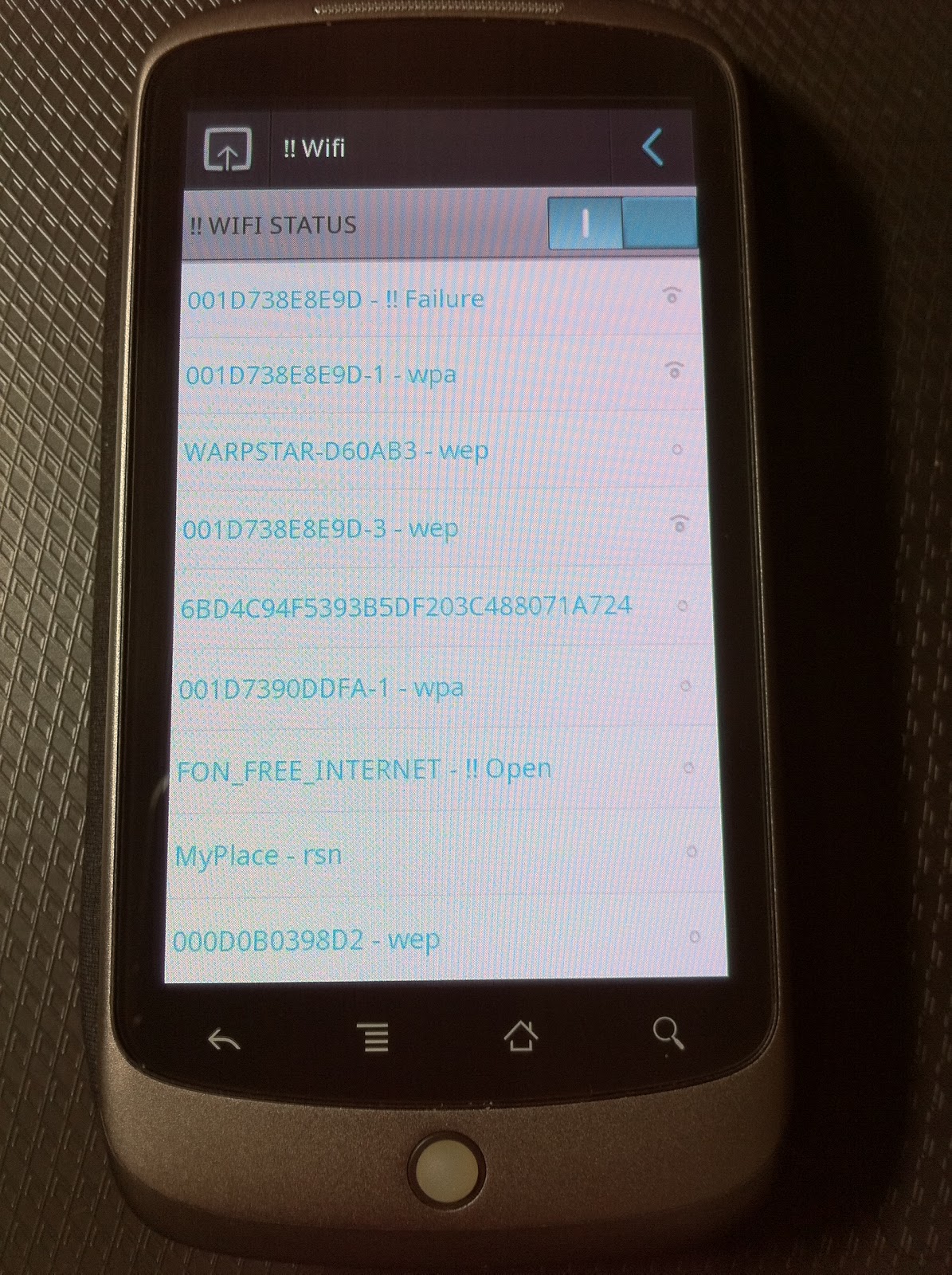

If you want to use wifi. You need to change the firmware path.
-CONFIG_BCM4329_FW_PATH="/system/etc/firmware/fw_bcm4329.bin"
+CONFIG_BCM4329_FW_PATH="/lib/firmware/fw_bcm4329.bin"
Any linux distribution uses X.Org as the X Window System. So we can need the Virtual Terminal.
-# CONFIG_VT is not set
+CONFIG_VT=y
+CONFIG_CONSOLE_TRANSLATIONS=y
+CONFIG_VT_CONSOLE=y
+CONFIG_VT_HW_CONSOLE_BINDING=y
Then, Preparing cross compiler. cross compiler uses prebuilt.git from Android git tree.
$ export PATH=$PATH:/prebuilt/linux-x86/toolchain/arm-eabi-4.4.0/bin
Final is compiling.
$ make oldconfig ARCH=arm CROSS_COMPILE=arm-eabi-
$ make zImage modules ARCH=arm CROSS_COMPILE=arm-eabi-
- Root Filesystem.
Of course, We use the MeeGo as a root filesystem. I created a kickstart file of NexusOne for using the mic2(Image Creator).
$ vi meego-handset-armv7l-nexusone-1.1.ks
lang en_US.UTF-8
keyboard us
timezone –utc America/Los_Angeles
auth –useshadow –enablemd5
part / –size=1600 –ondisk mmcblk0p –fstype=ext3
rootpw meego
xconfig –startxonboot
desktop –autologinuser=meego –defaultdesktop=DUI –session=/usr/bin/mcompositor
user –name meego –groups audio,video –password meego
repo –name=core –baseurl=http://repo.meego.com/MeeGo/releases/1.1/core/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
repo –name=handset –baseurl=http://repo.meego.com/MeeGo/releases/1.1/handset/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
repo –name=non-oss –baseurl=http://repo.meego.com/MeeGo/releases/1.1/non-oss/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
repo –name=updates-core –baseurl=http://repo.meego.com/MeeGo/updates/1.1/core/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
repo –name=updates-handset –baseurl=http://repo.meego.com/MeeGo/updates/1.1/handset/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
repo –name=updates-non-oss –baseurl=http://repo.meego.com/MeeGo/updates/1.1/non-oss/repos/armv7l/packages/ –save –debuginfo –source –gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-meego01
%packages
@MeeGo Core
@MeeGo Base
@Minimal MeeGo X Window System
@MeeGo Compliance
@MeeGo Handset Desktop
@MeeGo Handset Applications
@MeeGo Handset Applications Branding
@X for Handsets
@MeeGo Handset Base Support
Some development tools Link to heading
openssh-server
wget
strace
bootchart
gdb
gdb-gdbserver
Some extra tools/libs Link to heading
connman-test
xorg-x11-utils-xev
http://bugs.meego.com/show_bug.cgi?id=5651 Link to heading
-meegotouch-inputmethodbridges
-meegotouch-inputmethodframework
-meegotouch-inputmethodkeyboard
-meegotouch-inputmethodengine
For nexusone Link to heading
xorg-x11-drv-fbdev
mesa-dri-swrast-driver
yum
yum-utils
tar
%end
%post
set -x
Prelink not included because of following bug Link to heading
http://bugs.meego.com/show_bug.cgi?id=5217 Link to heading
make sure there aren’t core files lying around Link to heading
rm -f /core*
open serial line console for embedded system Link to heading
echo “s0:235:respawn:/sbin/agetty -L 115200 ttyS2 vt100” » /etc/inittab
work around for poor key import UI in PackageKit Link to heading
rm -f /var/lib/rpm/__db*
rpm –rebuilddb
Set up sane defaults for mthemedaemon settings Link to heading
Config_Src=gconftool-2 --get-default-source
gconftool-2 –direct –config-source $Config_Src \
-s -t string /meegotouch/theme/target NexusOne
By default N900 has different value than Aava for showStatusBar Link to heading
sed -i ’s!showStatusBar=false!showStatusBar=true!g’ /etc/meegotouch/devices.conf
Temporary fix to the meego-handset-fixup rpm package Link to heading
sed -i ’s!N900!NexusOne!g’ /etc/gconf/gconf.xml.defaults/%gconf-tree.xml
#sed -i ’s!/usr/sbin/meego-dm!/usr/bin/xinit /usr/bin/startdui!’ /etc/inittab
echo “#x:5:respawn:/usr/bin/xinit /usr/bin/startdui” »/etc/inittab
cat »/etc/meegotouch/devices.conf <
[NexusOne]
resolutionX=480
resolutionY=800
ppiX=256
ppiY=256
showStatusBar=false
EOF
cat >/usr/bin/startdui <
#!/bin/sh
/usr/bin/mthemedaemon &
/usr/bin/sysuid -software -remote-theme &
/usr/bin/meego-im-uiserver -software -remote-theme &
/usr/bin/mdecorator -software -remote-theme &
/usr/bin/startphonesim
exec /usr/bin/duihome –desktop -software -remote-theme
EOF
chmod +x /usr/bin/startdui
cat »/etc/rc.d/rc.sysinit <
Power Management Link to heading
echo 245000 >/sys/devices/system/cpu/cpu0/cpufreq/scaling_min_freq
echo 998400 >/sys/devices/system/cpu/cpu0/cpufreq/scaling_max_freq
echo ondemand >/sys/devices/system/cpu/cpu0/cpufreq/scaling_governor
echo 40000 >/sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
Wakelock debug Link to heading
echo 7 >/sys/module/wakelock/parameters/debug_mask
echo 1 >/proc/sys/kernel/panic_on_oops
echo 0 >/proc/sys/kernel/hung_task_timeout_secs
echo 4 >/proc/cpu/alignment
echo 10000000 >/proc/sys/kernel/sched_latency_ns
echo 2000000 >/proc/sys/kernel/sched_wakeup_granularity_ns
echo 1 >/proc/sys/kernel/sched_compat_yield
echo 0 >/proc/sys/kernel/sched_child_runs_first
Write value must be consistent with the above properties. Link to heading
Note that the driver only supports 6 slots, so we have HOME_APP at the Link to heading
same memory level as services. Link to heading
echo 0,1,2,7,14,15 >/sys/module/lowmemorykiller/parameters/adj
echo 1 >/proc/sys/vm/overcommit_memory
echo 4 >/proc/sys/vm/min_free_order_shift
echo 1536,2048,4096,5120,5632,6144 >/sys/module/lowmemorykiller/parameters/minfree
Set init its forked children’s oom_adj. Link to heading
echo -16 >/proc/1/oom_adj
Tweak background writeout Link to heading
echo 200 >/proc/sys/vm/dirty_expire_centisecs
echo 5 >/proc/sys/vm/dirty_background_ratio
mkdir -p /mnt/sdcard /mnt/system /mnt/cache /mnt/userdata
(sleep 5; /sbin/adbd) &
EOF
mkdir -p /system/bin
ln -s /bin/bash /system/bin/sh
swprogs="
/usr/share/applications/dialer.desktop
/usr/share/applications/duicontrolpanel.desktop
/usr/share/applications/meego-handset-calendar.desktop
/usr/share/applications/meego-handset-chat.desktop
/usr/share/applications/meego-handset-people.desktop
/usr/share/applications/meego-handset-video.desktop
/usr/share/applications/meegomusic.desktop
/usr/share/applications/meegophotos.desktop
/usr/share/applications/settings.desktop
/usr/share/applications/sms.desktop
/etc/xdg/autostart/applauncherd.desktop
/etc/xdg/autostart/mdecorator.desktop
/etc/xdg/autostart/meego-im-uiserver.desktop
/etc/xdg/autostart/meegotouch-systemui.desktop
"
for prog in $swprogs; do
sed -e "s/Exec=.*$/\0 -software/" -i $prog
done
sed ’s!session=/usr/bin/mcompositor!session=/usr/bin/duihome -software &!’ -i /etc/sysconfig/uxlaunch
Normal bootchart is only 30 long so we use this to get longer bootchart during startup when needed. Link to heading
cat > /sbin/bootchartd-long « EOF
#!/bin/sh
exec /sbin/bootchartd -n 4000
EOF
chmod +x /sbin/bootchartd-long

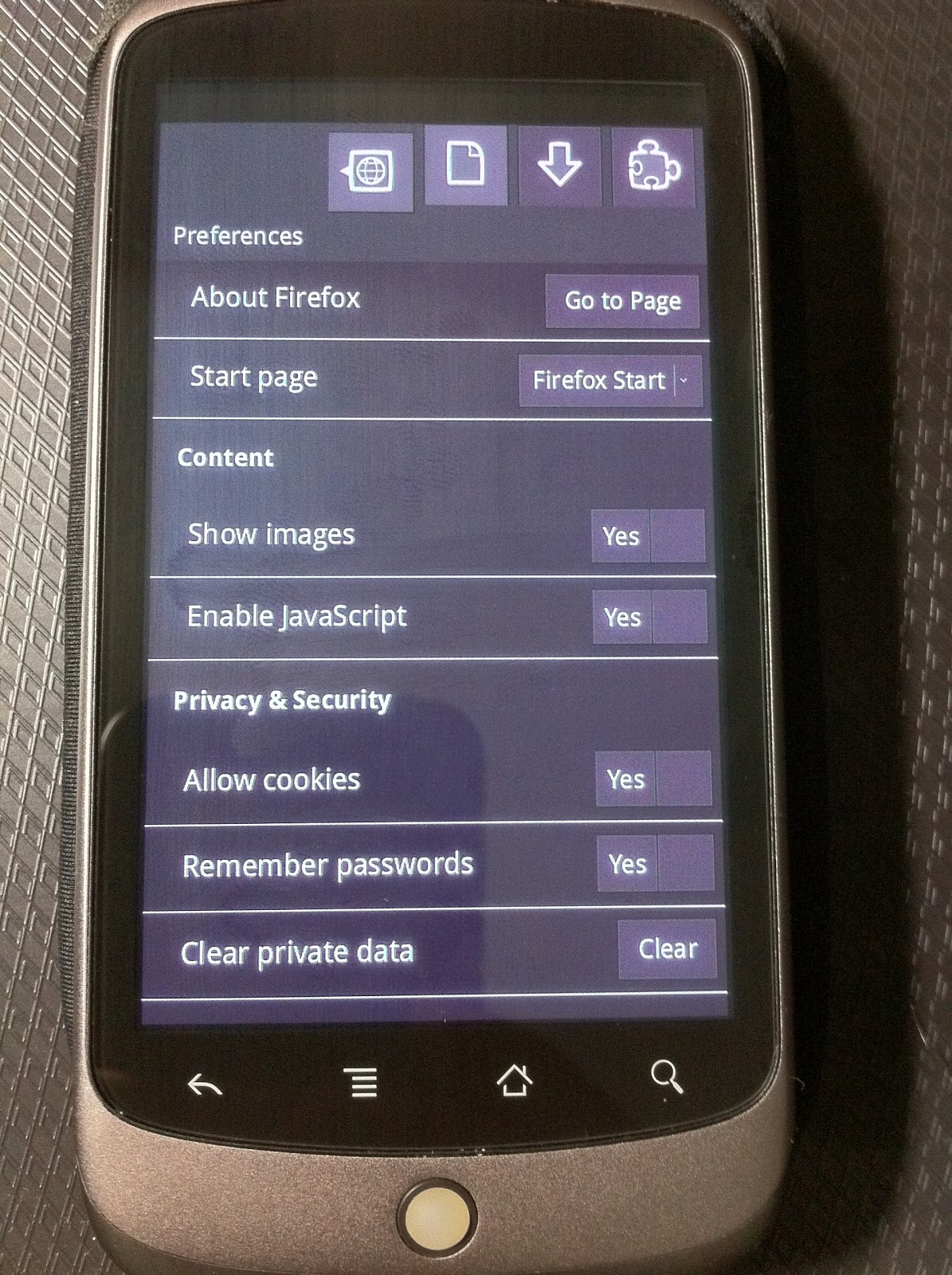

Temporary fix for BMC#8664 to get fennec startup time more reasonable. Link to heading
mkdir -p /home/meego/.mozilla/
chown -R meego:meego /home/meego/.mozilla/
cat »/etc/fstab « EOF
tmpfs /home/meego/.mozilla tmpfs size=20m 0 0
/dev/mmcblk0p1 /mnt/sdcard vfat defaults 0 0
/dev/mtdblock3 /mnt/system yaffs2 defaults 0 0
/dev/mtdblock4 /mnt/cache yaffs2 defaults 0 0
/dev/mtdblock5 /mnt/userdata yaffs2 defaults 0 0
EOF
%end
%post –nochroot
set -x
if [ -n “$IMG_NAME” ]; then
echo "BUILD: $IMG_NAME" >> $INSTALL_ROOT/etc/meego-release
fi
Creating rootfs tar ball. Link to heading
for dir in mount | grep $INSTALL_ROOT\/ | awk '{ print $3 }' | sort -r; do
umount $dir
done
outdir=pwd
(cd $INSTALL_ROOT; tar czvf $outdir/${IMG_NAME}-rootfs.tar.gz .)
%end
Rootfs tar ball is smarter then raw image or filesystem image. I used it. and It extract to you microSD card. Layout the microSD partition. /dev/mmcblk0p1 is used from Android. /dev/mmcblk0p2 is MeeGo rootfs.
fdisk -l Link to heading
Disk /dev/mmcblk0: 4013 MB, 4013948928 bytes
124 heads, 62 sectors/track, 1019 cylinders
Units = cylinders of 7688 * 512 = 3936256 bytes
Disk identifier: 0x00029d6c
Device Boot Start End Blocks Id System
/dev/mmcblk0p1 1 131 503533 c W95 FAT32 (LBA)
/dev/mmcblk0p2 132 959 3182832 83 Linux
- Boot
The microSD card insert to NexusOne. And Boot up fastboot mode. Then run the following command. root= is MeeGo root filesystem.
$ fastboot -c ‘init=/sbin/init rootwait root=/dev/mmcblk0p2 rootfstype=ext3 rw’ boot zImage
creating boot image…
creating boot image - 2240512 bytes
downloading ‘boot.img’… OKAY
booting… OKAY

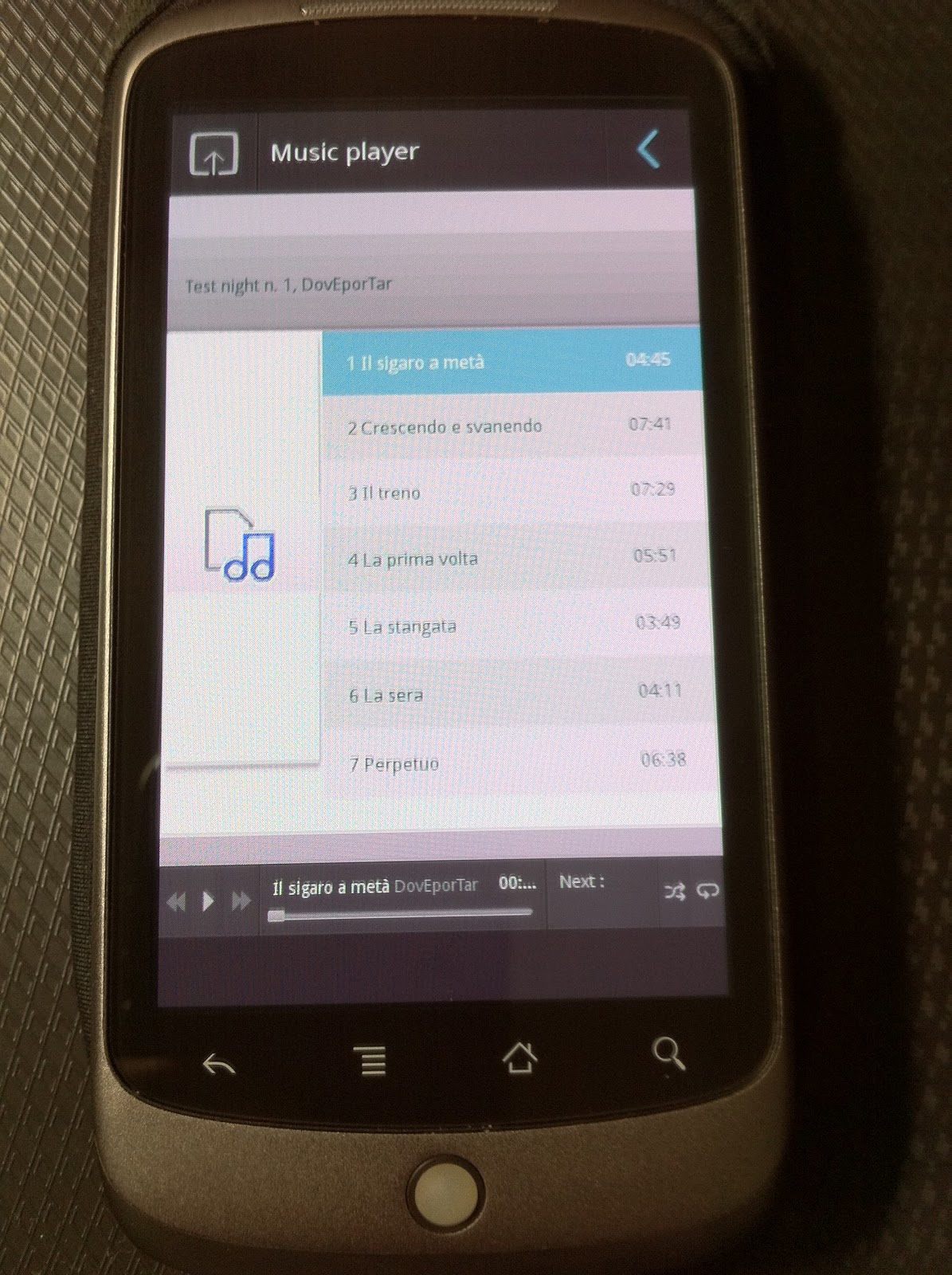

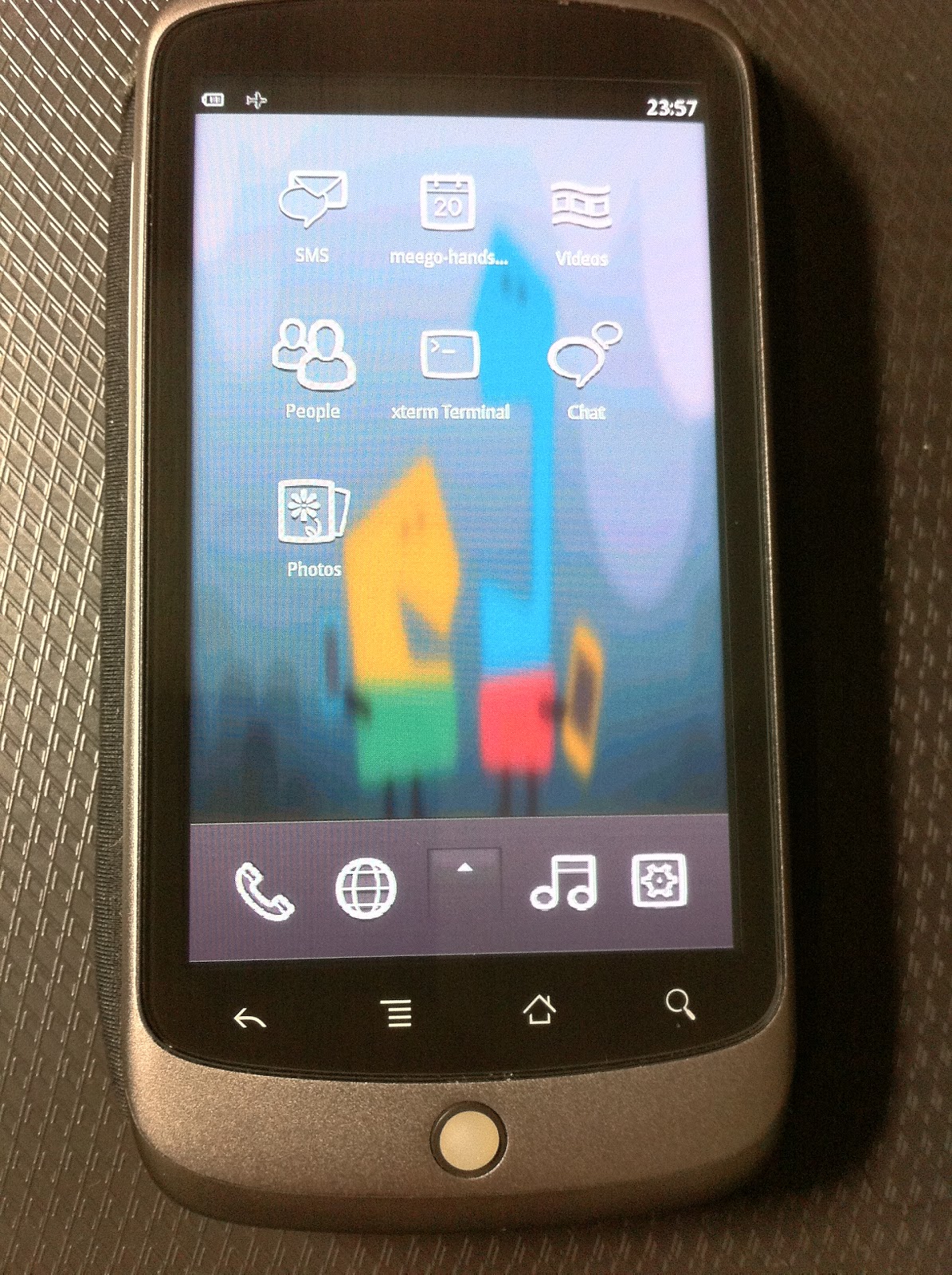

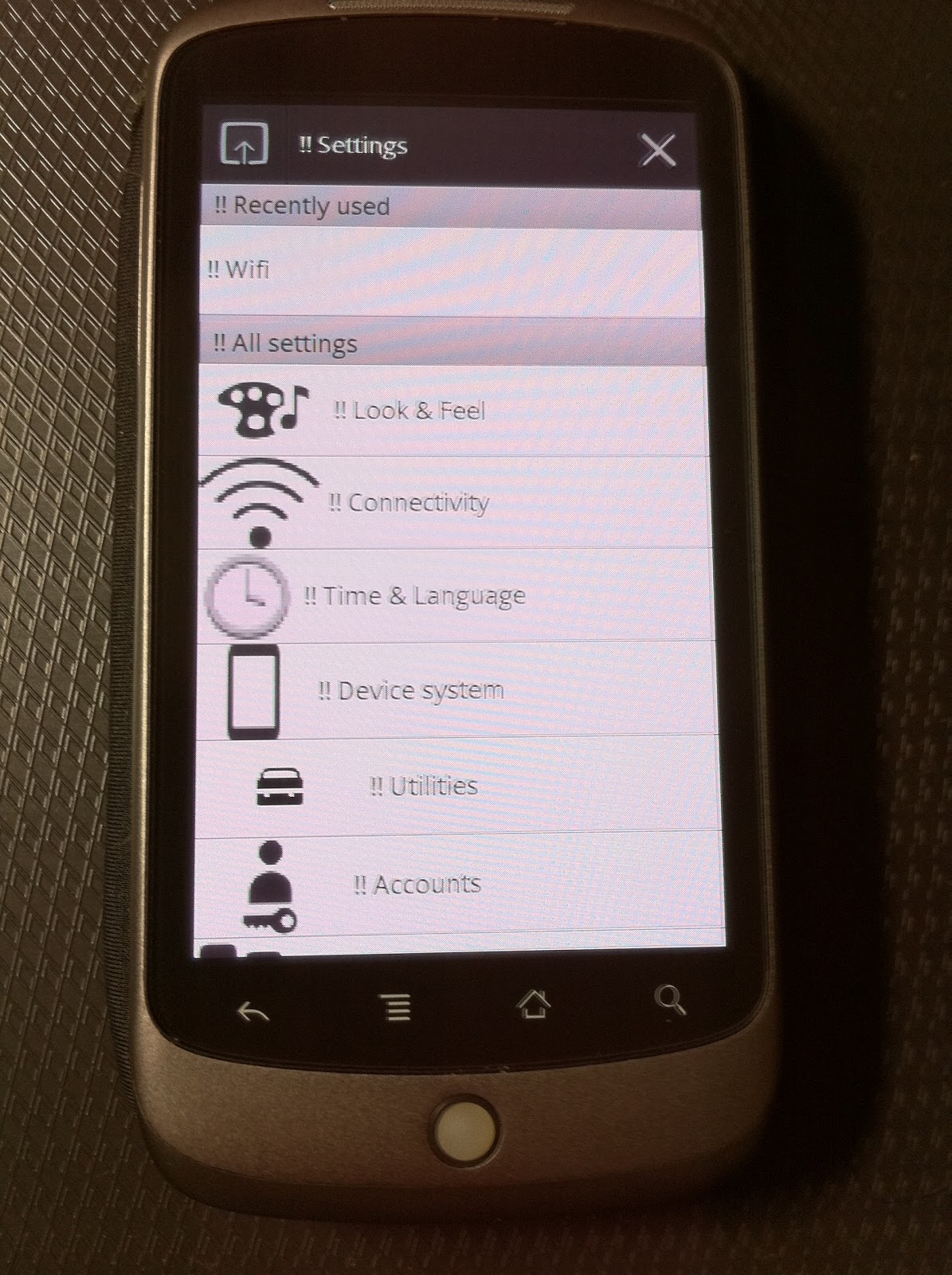

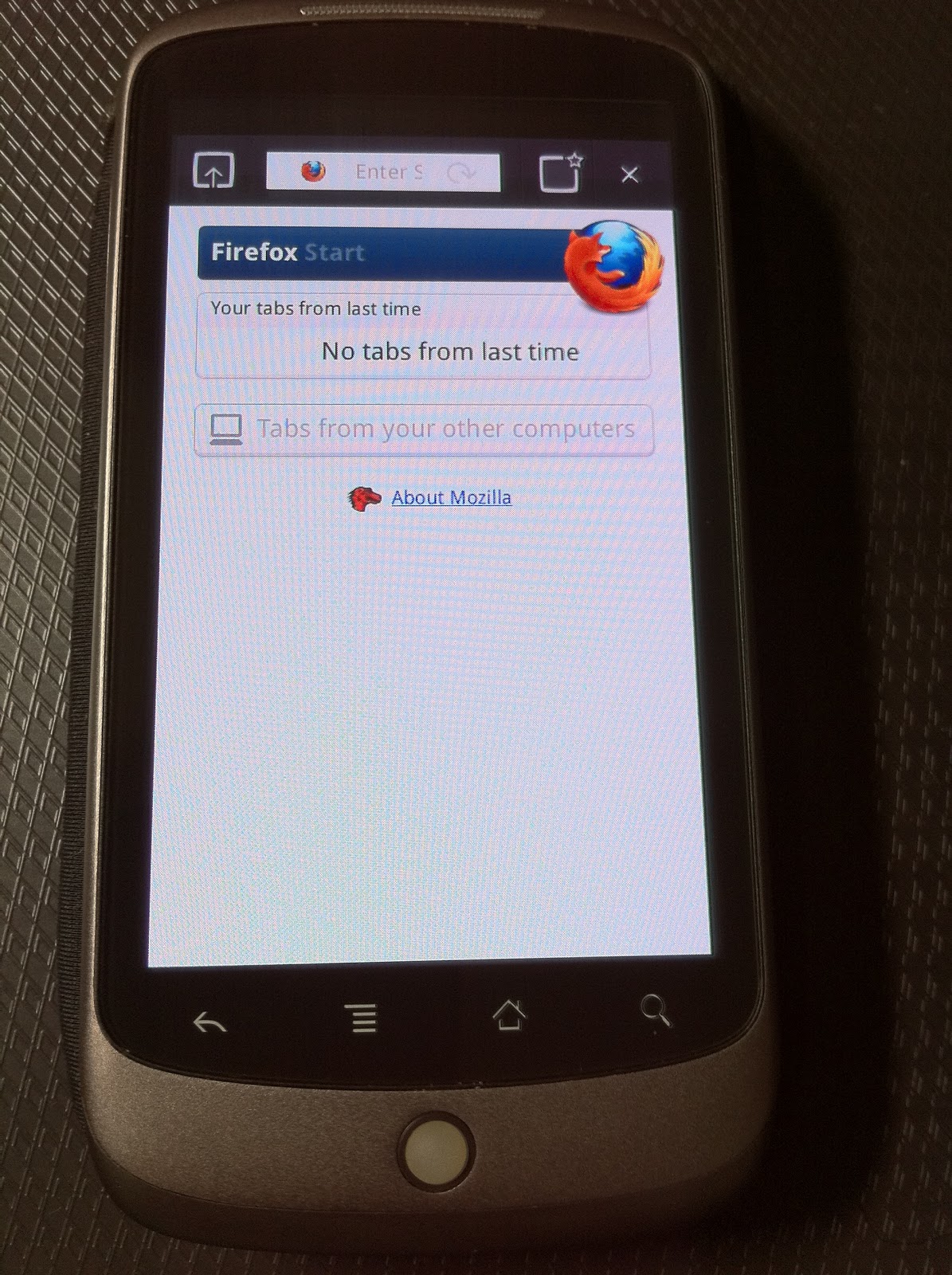

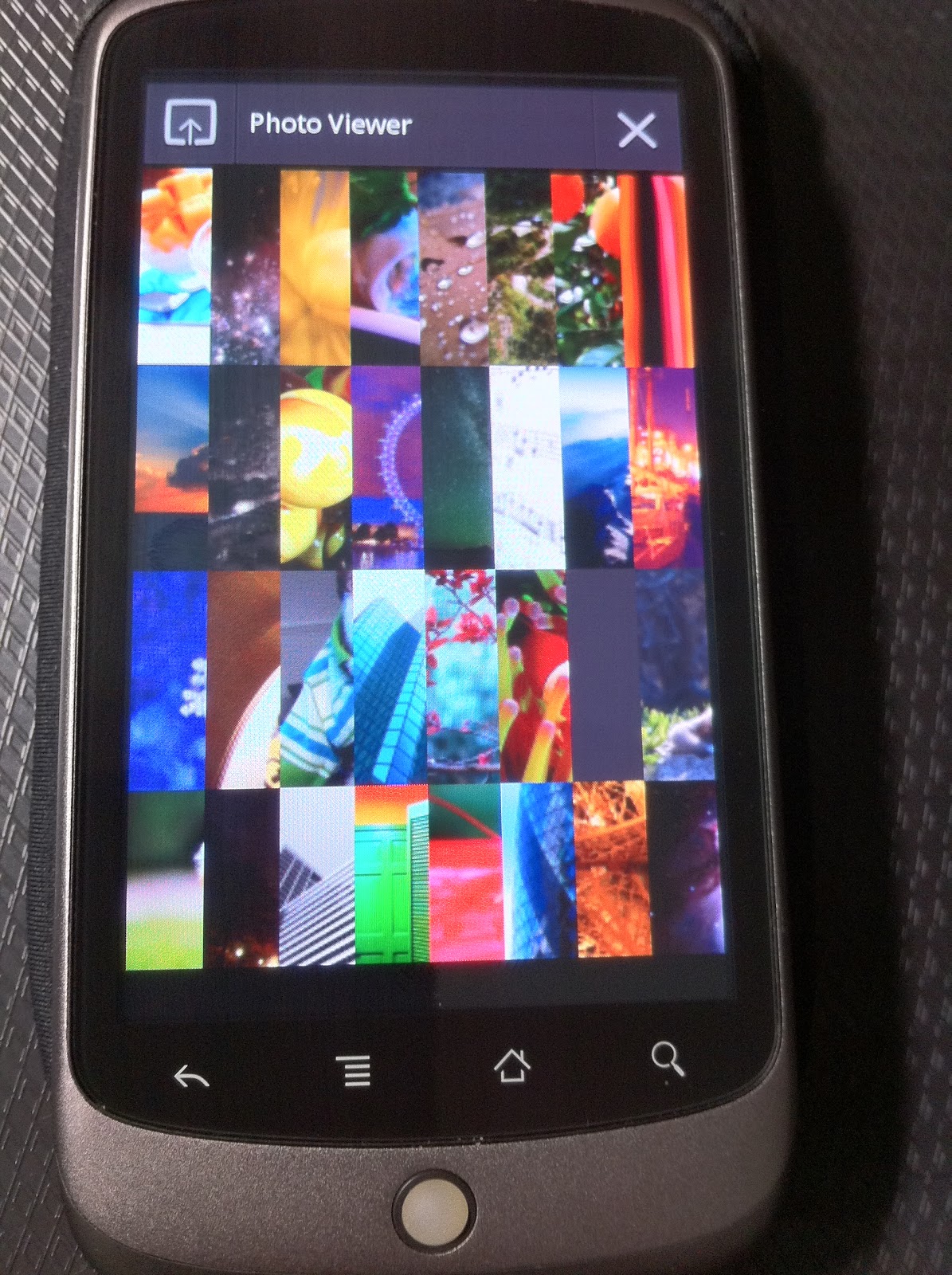

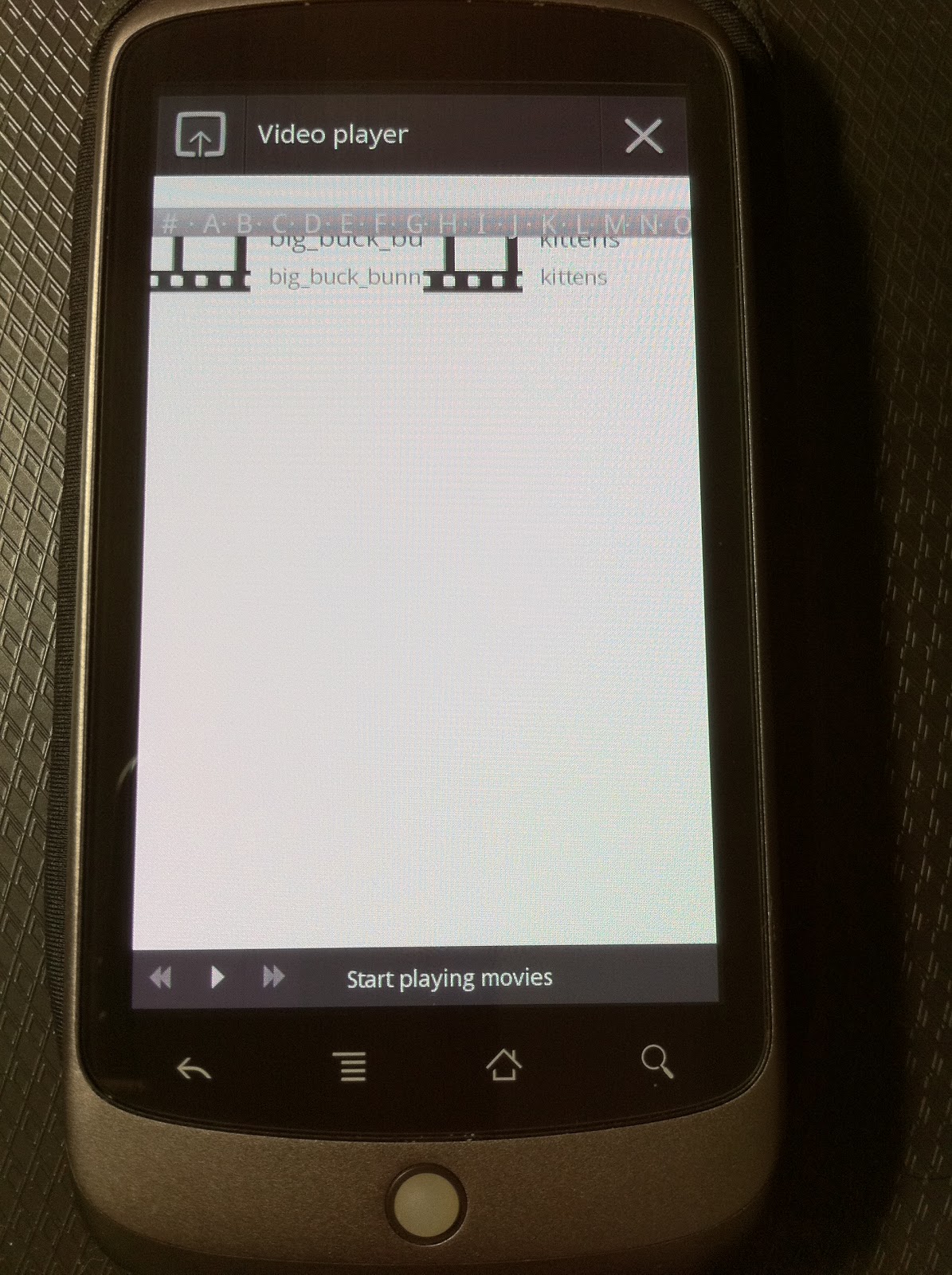

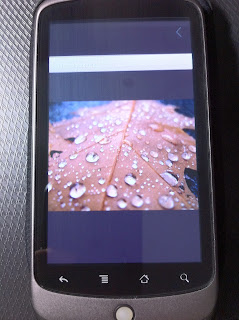

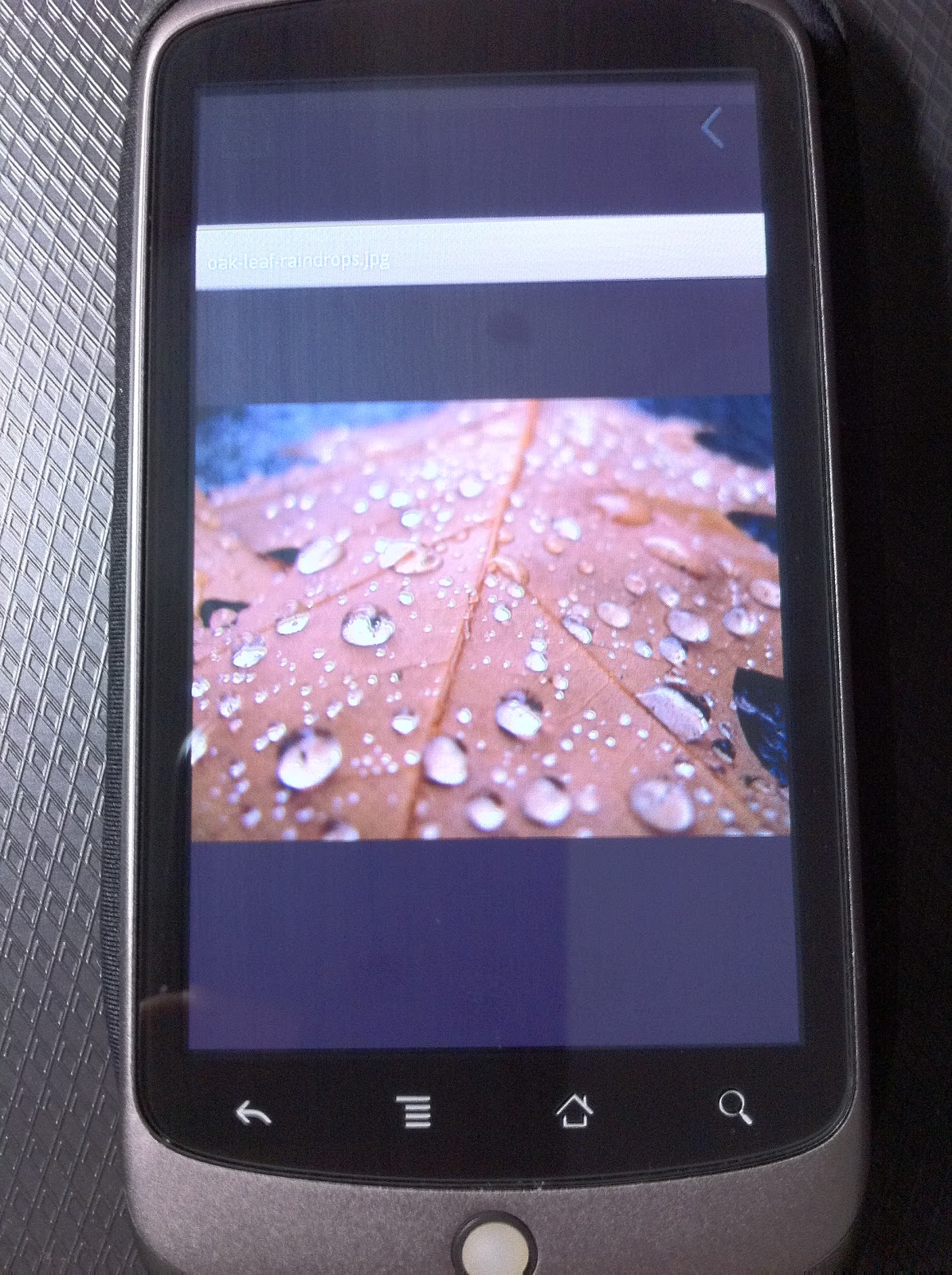

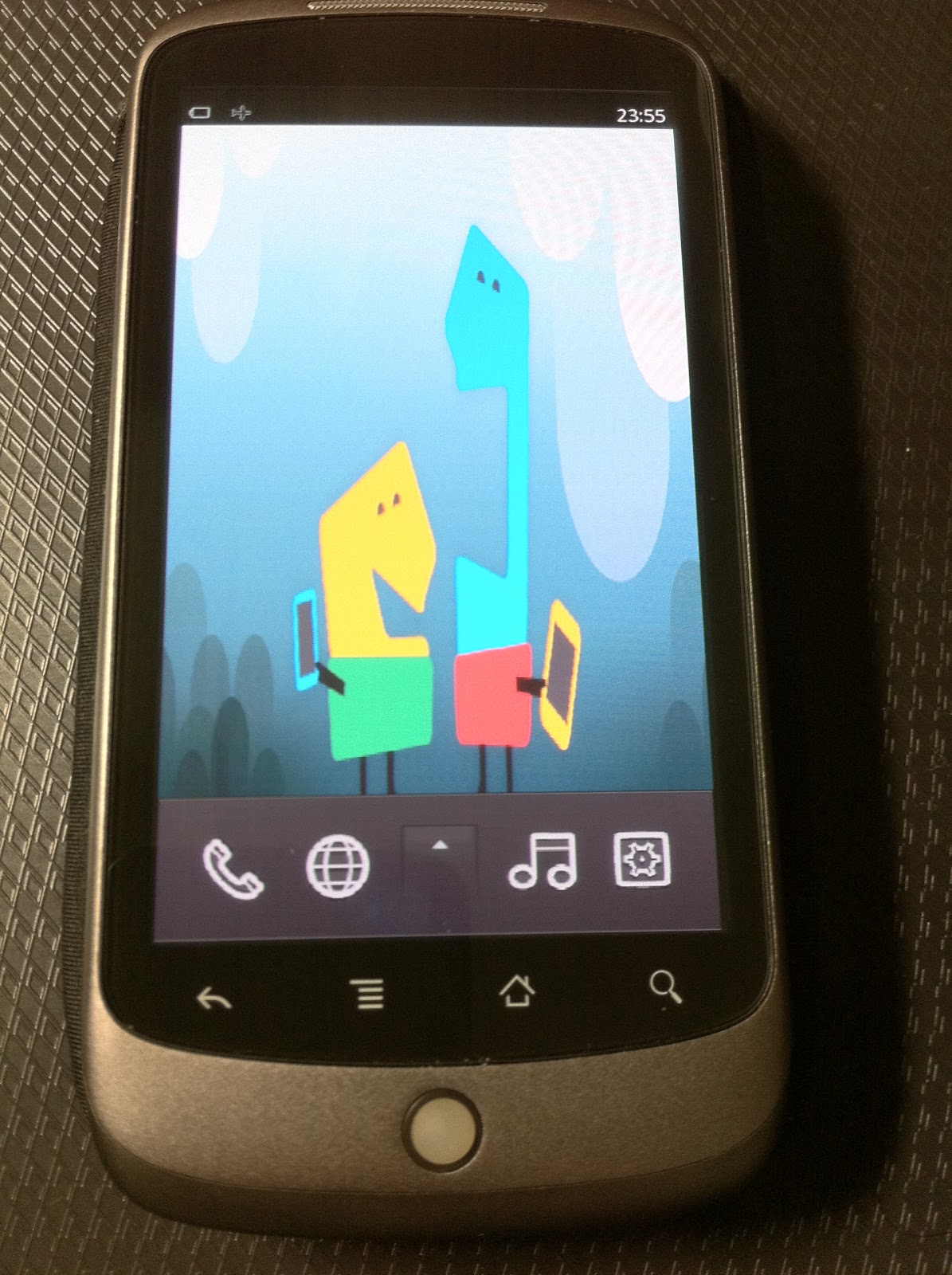

Enjoy!
They are some messages.
dmesg
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Linux version 2.6.29-01118-ga971bfd (mitsutaka@localhost) (gcc version 4.4.0 (GCC) ) #21 PREEMPT Sun Oct 31 10:08:45 JST 2010
[ 0.000000] CPU: ARMv7 Processor [510f00f2] revision 2 (ARMv7), cr=10c5387f
[ 0.000000] CPU: VIPT nonaliasing data cache, VIVT ASID tagged instruction cache
[ 0.000000] Machine: mahimahi
[ 0.000000] Ignoring unrecognised tag 0x4d534d71
[ 0.000000] Ignoring unrecognised tag 0x4d534d72
[ 0.000000] Ignoring unrecognised tag 0x4d534d73
[ 0.000000] Ignoring unrecognised tag 0x4d534d74
[ 0.000000] Ignoring unrecognised tag 0x4d534d75
[ 0.000000] Ignoring unrecognised tag 0x4d534d76
[ 0.000000] Ignoring unrecognised tag 0x5441000a
[ 0.000000] Ignoring unrecognised tag 0x41387898
[ 0.000000] Memory policy: ECC disabled, Data cache writeback
[ 0.000000] On node 0 totalpages: 56064
[ 0.000000] free_area_init_node: node 0, pgdat c03e12e8, node_mem_map c0490000
[ 0.000000] Normal zone: 438 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 55626 pages, LIFO batch:15
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 55626
[ 0.000000] Kernel command line: board_mahimahi.disable_uart3=0 board_mahimahi.usb_h2w_sw=0 board_mahimahi.disable_sdcard=0 diag.enabled=0 board_mahimahi.debug_uart=0 smisize=0 androidboot.baseband=4.06.00.12_7 androidboot.cid=GOOGL001 androidboot.carrier=GOOGLE androidboot.mid=PB9910000 androidboot.keycaps=qwerty androidboot.mode=normal androidboot.serialno=HT015P803993 androidboot.bootloader=0.33.0012 init=/sbin/init rootwait root=/dev/mmcblk0p2 rootfstype=ext3 rw
[ 0.000000] Unknown boot option `board_mahimahi.disable_uart3=0’: ignoring
[ 0.000000] Unknown boot option `board_mahimahi.usb_h2w_sw=0’: ignoring
[ 0.000000] Unknown boot option `androidboot.baseband=4.06.00.12_7’: ignoring
[ 0.000000] Unknown boot option `androidboot.cid=GOOGL001’: ignoring
[ 0.000000] Unknown boot option `androidboot.carrier=GOOGLE’: ignoring
[ 0.000000] Unknown boot option `androidboot.mid=PB9910000’: ignoring
[ 0.000000] Unknown boot option `androidboot.keycaps=qwerty’: ignoring
[ 0.000000] Unknown boot option `androidboot.mode=normal’: ignoring
[ 0.000000] Unknown boot option `androidboot.bootloader=0.33.0012’: ignoring
[ 0.000000] PID hash table entries: 1024 (order: 10, 4096 bytes)
[ 0.000000] Console: colour dummy device 80x30
[ 0.000000] console [tty0] enabled
[ 0.000610] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000946] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.012634] Memory: 219MB = 219MB total
[ 0.012695] Memory: 217344KB available (3656K code, 870K data, 100K init)
[ 0.013275] Calibrating delay loop… 509.54 BogoMIPS (lpj=2547712)
[ 0.239929] Mount-cache hash table entries: 512
[ 0.240844] Initializing cgroup subsys debug
[ 0.240875] Initializing cgroup subsys cpuacct
[ 0.240905] Initializing cgroup subsys freezer
[ 0.240936] CPU: Testing write buffer coherency: ok
[ 0.243591] net_namespace: 780 bytes
[ 0.244140] regulator: core version 0.5
[ 0.244445] NET: Registered protocol family 16
[ 0.245635] mahimahi_init() revision=129
[ 3.801177] mahimahi_init_mmc()+
[ 3.801544] mahimahi_init_mmc()-
[ 3.809417] bio: create slab at 0
[ 3.810760] msm_i2c_probe
[ 3.810974] msm_i2c_probe: clk_ctl 35d, 100000 Hz
[ 3.812377] regulator: VDCDC1: 1000 <–> 1300 mV
[ 3.812591] regulator: VDCDC2: 1260 mV
[ 3.812774] regulator: VDCDC3: 800 <–> 3300 mV
[ 3.813018] regulator: LDO1: 1000 <–> 3150 mV
[ 3.813201] regulator: LDO2: 3300 mV
[ 3.815246] Bluetooth: Core ver 2.15
[ 3.815521] NET: Registered protocol family 31
[ 3.815551] Bluetooth: HCI device and connection manager initialized
[ 3.815582] Bluetooth: HCI socket layer initialized
[ 3.817169] NET: Registered protocol family 2
[ 3.817382] IP route cache hash table entries: 2048 (order: 1, 8192 bytes)
[ 3.817962] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 3.818176] TCP bind hash table entries: 8192 (order: 3, 32768 bytes)
[ 3.818267] TCP: Hash tables configured (established 8192 bind 8192)
[ 3.818298] TCP reno registered
[ 3.818634] NET: Registered protocol family 1
[ 3.819610] smd_init()
[ 3.819641] smd_core_init()
[ 3.819732] smd_core_init() done
[ 3.819763] msm_init_last_radio_log: last radio log is 40000 bytes long
[ 3.820281] smd_alloc_channel() cid=00 size=08192 ‘SMD_DS’
[ 3.820495] smd_alloc_channel() cid=01 size=08192 ‘SMD_DIAG’
[ 3.820678] smd_alloc_channel() cid=02 size=08192 ‘SMD_RPCCALL’
[ 3.820831] smd_alloc_channel() cid=07 size=32768 ‘SMD_DATA1’
[ 3.821044] smd_alloc_channel() cid=08 size=08192 ‘SMD_DATA2’
[ 3.821197] smd_alloc_channel() cid=09 size=08192 ‘SMD_DATA3’
[ 3.821411] smd_alloc_channel() cid=11 size=32768 ‘SMD_DATA5’
[ 3.821563] smd_alloc_channel() cid=12 size=32768 ‘SMD_DATA6’
[ 3.821746] smd_alloc_channel() cid=13 size=32768 ‘SMD_DATA7’
[ 3.821899] smd_alloc_channel() cid=15 size=08192 ‘SMD_DATA9’
[ 3.822082] smd_alloc_channel() cid=27 size=08192 ‘SMD_GPSNMEA’
[ 3.822265] smd_alloc_channel() cid=40 size=08192 ‘DSP_DIAG’
[ 3.822448] smd_alloc_channel() cid 41 does not exist
[ 3.822509] smd_alloc_channel() cid=42 size=08192 ‘DSP_DAL_AQ_VID’
[ 3.822662] smd_alloc_channel() cid=43 size=08192 ‘DSP_DAL_AQ_AUD’
[ 3.822845] smd_alloc_channel() cid=46 size=08192 ‘DSP_DAL00’
[ 3.822998] smd_alloc_channel() cid 47 does not exist
[ 3.823028] smd_alloc_channel() cid=48 size=08192 ‘SMD_DAL_AM_AUD’
[ 3.823211] smd_alloc_channel() cid=49 size=08192 ‘SMD_DAL00’
[ 3.823394] smd_alloc_channel() cid=50 size=08192 ‘SMD_DATA5_CNTL’
[ 3.823547] smd_alloc_channel() cid=51 size=08192 ‘SMD_DATA6_CNTL’
[ 3.823760] smd_alloc_channel() cid=52 size=08192 ‘SMD_DATA7_CNTL’
[ 3.825073] SMD: ch 2 1 -> 2
[ 3.825225] Switched to high resolution mode on CPU 0
[ 3.827972] mdp_probe: initialized
[ 3.828033] spi: SPI_CONFIG=8f
[ 3.828063] spi: SPI_IO_CONTROL=401
[ 3.828094] spi: SPI_OPERATIONAL=85
[ 3.828125] spi: SPI_ERROR_FLAGS_EN=7f
[ 3.828125] spi: SPI_ERROR_FLAGS=7f
[ 3.828155] -mahimahi_init_spi_hack()
[ 3.828552] Registered led device: lcd-backlight
[ 3.831054] mahimahi-microp 0-0066: microp version [0B][15]
[ 3.831542] input: lightsensor-level as /devices/virtual/input/input0
[ 3.831939] Registered led device: green
[ 3.832183] Registered led device: amber
[ 3.832366] Registered led device: red
[ 3.832580] Registered led device: blue
[ 3.832794] Registered led device: jogball-backlight
[ 3.832977] Registered led device: button-backlight
[ 3.833496] microp_function_initialize: als_kadc=0x4f, als_gadc=0xc0
[ 3.848602] flashlight_init
[ 3.848663] flashlight_probe
[ 3.848663] flashlight_setup_gpio
[ 3.848907] Registered led device: flashlight
[ 3.849609] smd_alloc_channel() cid 41 does not exist
[ 3.849639] smd_alloc_channel() cid 47 does not exist
[ 3.851470] H2W: htc_35mm_jack driver register
[ 3.852172] input: h2w headset as /devices/virtual/input/input1
[ 3.861419] ashmem: initialized
[ 3.862426] yaffs Oct 30 2010 22:16:35 Installing.
[ 3.866638] alg: No test for stdrng (krng)
[ 3.866760] io scheduler noop registered
[ 3.866790] io scheduler anticipatory registered (default)
[ 3.867462] +mddi_client_nt35399_init()
[ 3.867950] samsung_oled_panel_init: +()
[ 3.868255] samsung_oled_panel_init: -()
[ 3.868957] msmfb_probe() installing 480 x 800 panel
[ 3.869445] mdp_lcdc_probe: initialized
[ 3.882446] msm_serial: driver initialized
[ 3.882781] msm_serial_hs.0: ttyHS0 at MMIO 0xa0200000 (irq = 44) is a MSM HS UART
[ 3.883270] msm_serial_hs module loaded
[ 3.887481] loop: module loaded
[ 3.887603] pmem: 1 init
[ 3.888610] pmem_adsp: 1 init
[ 3.890472] pmem_camera: 1 init
[ 3.891296] Android kernel panic handler initialized (bind=crashdata)
[ 3.891357] PPP generic driver version 2.4.2
[ 3.891723] PPP Deflate Compression module registered
[ 3.891754] PPP BSD Compression module registered
[ 3.892639] PPP MPPE Compression module registered
[ 3.892669] NET: Registered protocol family 24
[ 3.893646] rmnet0 (): not using net_device_ops yet
[ 3.894287] rmnet1 (): not using net_device_ops yet
[ 3.894897] rmnet2 (): not using net_device_ops yet
[ 3.895538] Linux video capture interface: v2.00
[ 3.895690] msm_v4l2: msm_v4l2_init
[ 3.896179] s5k3e2fx_sensor_probe
[ 4.508972] allocated dma buffer at ffa01000, dma_addr 2d55e000
[ 4.509094] read CFG0 = aa5400c0, CFG1 = 6746a
[ 4.509124] CFG0 = e85408c0, CFG1 = 4745e
[ 4.509155] CFG0: cw/page=3 ud_sz=516 ecc_sz=10 spare_sz=0 num_addr_cycles=5
[ 4.509246] NAND_READ_ID = 5510bcad
[ 4.509399] status: e03120
[ 4.509429] nandid: 5510bcad maker ad device bc
[ 4.509490] CFG0: cw/page=3 ud_sz=512 ecc_sz=10 spare_sz=4
[ 4.509582] DEV_CMD1: f00f3000
[ 4.509643] <6>NAND_EBI2_ECC_BUF_CFG: 1ff
[ 4.509674] flash_id: 5510bcad size 20000000
[ 4.509704] Creating 6 MTD partitions on “msm_nand”:
[ 4.509735] 0x000003ee0000-0x000003fc0000 : “misc”
[ 4.511718] 0x000004240000-0x000004740000 : “recovery”
[ 4.517822] 0x000004740000-0x0000049c0000 : “boot”
[ 4.521270] 0x0000049c0000-0x00000dac0000 : “system”
[ 4.674621] 0x00000dac0000-0x0000139c0000 : “cache”
[ 4.775482] 0x0000139c0000-0x00001fe00000 : “userdata”
[ 4.983428] usb_probe() io=ce060000, irq=58, dma=ffa02000(2d562000)
[ 4.984161] usb_function_register() ‘adb’
[ 4.984375] usb_function_register() ‘usb_mass_storage’
[ 4.984527] usb_function_register() ‘diag’
[ 4.984558] msm_hsusb: functions bound. starting.
[ 4.984588] usb_bind_func() ‘usb_mass_storage’
[ 4.985290] usb_mass_storage usb_mass_storage: Number of LUNs=1
[ 4.985382] usb_bind_func() ‘adb’
[ 4.985382] adb_bind() cd55a878, cd55aa38
[ 4.985748] adb_bind() allocated 4 tx requests
[ 4.986267] usb_bind_func() ‘diag’
[ 4.986755] SMD: ch 1 1 -> 2
[ 4.987426] hsusb: IDLE -> ONLINE
[ 4.987579] hsusb: reset controller
[ 4.987854] mahimahi_ts_power: power 1
[ 5.025329] msm_hsusb_phy_reset: success
[ 5.135864] msm_i2c msm_i2c.0: error, status 43c8
[ 5.135894] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.175323] ulpi: write 0x0c to 0x31
[ 5.175323] ulpi: write 0x31 to 0x32
[ 5.175354] ulpi: write 0x1d to 0x0d
[ 5.175384] ulpi: write 0x1d to 0x10
[ 5.175415] ept #0 out max:64 head:ffa02000 bit:0
[ 5.175415] ept #1 out max:512 head:ffa02080 bit:1
[ 5.175445] ept #2 out max:512 head:ffa02100 bit:2
[ 5.175476] ept #3 out max:512 head:ffa02180 bit:3
[ 5.175506] ept #0 in max:64 head:ffa02040 bit:16
[ 5.175537] ept #1 in max:512 head:ffa020c0 bit:17
[ 5.175567] ept #2 in max:512 head:ffa02140 bit:18
[ 5.175567] ept #3 in max:512 head:ffa021c0 bit:19
[ 5.175628] usb: notify offline
[ 5.175659] diag_configure() 0
[ 5.175659] msm_hsusb: enable pullup
[ 5.175689] hsusb: ONLINE -> OFFLINE
[ 5.175720] ### notify_usb_connected(0) ###
[ 5.175750] diag_configure() 0
[ 5.175750] msm_hsusb: disable pullup
[ 5.215332] msm_hsusb_phy_reset: success
[ 5.246032] synaptics_ts_probe: Product Major Version 1
[ 5.246704] synaptics_ts_probe: Product Minor Version 3
[ 5.247406] synaptics_ts_probe: product property 2
[ 5.248077] synaptics_ts_probe: device control 81
[ 5.248748] synaptics_ts_probe: interrupt enable 1
[ 5.250640] synaptics_ts_probe: 0xe0: 1 1 1 2 1 3 0 0
[ 5.251678] synaptics_ts_probe: Sensor properties 701
[ 5.254852] synaptics_ts_probe: max_x 4050, max_y 6822
[ 5.254882] synaptics_ts_probe: inactive_x -210 -168, inactive_y -127 -341
[ 5.254913] synaptics_ts_probe: snap_x 0-0 0-0, snap_y 0-0 0-0
[ 5.255310] input: synaptics-rmi-touchscreen as /devices/virtual/input/input2
[ 5.256072] synaptics_ts_probe: Start touchscreen synaptics-rmi-touchscreen in interrupt mode
[ 5.256927] GPIO Matrix Keypad Driver: Start keypad matrix for mahimahi-keypad… in interrupt mode
[ 5.257080] GPIO Input Driver: Start gpio inputs for mahimahi-keypad… in interrupt mode
[ 5.257751] input: mahimahi-keypad as /devices/virtual/input/input3
[ 5.258392] input: mahimahi-nav as /devices/virtual/input/input4
[ 5.258819] capella_cm3602_probe: probe
[ 5.258850] capella_cm3602_probe: allocating input device
[ 5.258911] capella_cm3602_probe: registering input device
[ 5.259277] input: proximity as /devices/virtual/input/input5
[ 5.259521] capella_cm3602_probe: registering misc device
[ 5.259735] capella_cm3602_setup
[ 5.259796] proximity 1
[ 5.260314] using input dev h2w headset for key reset
[ 5.260375] using input dev mahimahi-keypad for key reset
[ 5.260437] using input dev mahimahi-nav for key reset
[ 5.261505] using rtc device, msm_rtc, for alarms<6>rs30000048:00010000 rs30000048:00010000: rtc core: registered msm_rtc as rtc0
[ 5.261688] AKM8973 compass driver: init
[ 5.263183] input: compass as /devices/virtual/input/input6
[ 5.263946] a1026_init
[ 5.264373] Driver for 1-wire Dallas network protocol.
[ 5.265777] msm_i2c msm_i2c.0: error, status 43c8
[ 5.265838] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.265899] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 5
[ 5.266265] msm_i2c msm_i2c.0: error, status 43c8
[ 5.266296] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.266357] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 4
[ 5.266723] msm_i2c msm_i2c.0: error, status 43c8
[ 5.266754] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.266815] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 3
[ 5.267150] msm_i2c msm_i2c.0: error, status 43c8
[ 5.267211] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.267242] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 2
[ 5.267608] msm_i2c msm_i2c.0: error, status 43c8
[ 5.267669] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.267700] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 1
[ 5.268066] msm_i2c msm_i2c.0: error, status 43c8
[ 5.268096] msm_i2c msm_i2c.0: Error during data xfer (-5)
[ 5.268157] ds2482 0-0018: i2c write c3 87 failed, -5, retries left 0
[ 5.269653] device-mapper: uevent: version 1.0.3
[ 5.270202] device-mapper: ioctl: 4.14.0-ioctl (2008-04-23) initialised: [email protected]
[ 5.270294] Bluetooth: HCI UART driver ver 2.2
[ 5.270324] Bluetooth: HCI H4 protocol initialized
[ 5.270355] Bluetooth: HCILL protocol initialized
[ 5.271697] mmc0: Qualcomm MSM SDCC at 0x00000000a0300000 irq 24,0 dma 8
[ 5.271759] mmc0: 4 bit data mode enabled
[ 5.271759] mmc0: MMC clock 144000 -> 50000000 Hz, PCLK 64000000 Hz
[ 5.271789] mmc0: Slot eject status = 1
[ 5.271820] mmc0: Power save feature enable = 1
[ 5.271850] mmc0: DM non-cached buffer at ffa04000, dma_addr 0x2d58e000
[ 5.271881] mmc0: DM cmd busaddr 0x2d58e000, cmdptr busaddr 0x2d58e300
[ 5.272796] mmc1: Qualcomm MSM SDCC at 0x00000000a0400000 irq 26,0 dma 8
[ 5.272827] mmc1: 4 bit data mode enabled
[ 5.272857] mmc1: MMC clock 144000 -> 50000000 Hz, PCLK 64000000 Hz
[ 5.272888] mmc1: Slot eject status = 0
[ 5.272918] mmc1: Power save feature enable = 1
[ 5.272918] mmc1: DM non-cached buffer at ffa05000, dma_addr 0x2d590000
[ 5.272949] mmc1: DM cmd busaddr 0x2d590000, cmdptr busaddr 0x2d590300
[ 5.274658] logger: created 64K log ’log_main’
[ 5.274902] logger: created 256K log ’log_events’
[ 5.275115] logger: created 64K log ’log_radio'
[ 5.275207] ram_console: got buffer at 3a00000, size 40000
[ 5.275390] ram_console: found existing buffer, size 28431, start 28431
[ 5.401641] console [ram-1] enabled
[ 5.455413] TCP cubic registered
[ 5.455993] NET: Registered protocol family 10
[ 5.457031] lo: Disabled Privacy Extensions
[ 5.458343] Mobile IPv6
[ 5.458618] IPv6 over IPv4 tunneling driver
[ 5.459625] sit0: Disabled Privacy Extensions
[ 5.460632] ip6tnl0: Disabled Privacy Extensions
[ 5.461059] NET: Registered protocol family 17
[ 5.461242] NET: Registered protocol family 15
[ 5.461547] Bluetooth: L2CAP ver 2.13
[ 5.461700] Bluetooth: L2CAP socket layer initialized
[ 5.461853] Bluetooth: SCO (Voice Link) ver 0.6
[ 5.462127] Bluetooth: SCO socket layer initialized
[ 5.463043] Bluetooth: RFCOMM socket layer initialized
[ 5.463439] Bluetooth: RFCOMM TTY layer initialized
[ 5.463592] Bluetooth: RFCOMM ver 1.11
[ 5.463745] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 5.464019] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 5.464355] ThumbEE CPU extension supported.
[ 5.465087] clock_late_init() disabled 18 unused clocks
[ 5.465423] mahimahi_wifi_init: start
[ 5.475402] VFP support v0.3: implementor 51 architecture 0 part 0f variant 0 rev 1
[ 5.480468] rs30000048:00010000 rs30000048:00010000: setting system clock to 2010-10-30 01:32:33 UTC (1288402353)
[ 5.480957] Waiting for root device /dev/mmcblk0p2…
[ 5.520751] mmc1: Command timeout
[ 5.526733] mmc1: Command timeout
[ 5.532745] mmc1: Command timeout
[ 5.538726] mmc1: Command timeout
[ 5.930267] batt: 100%, 4157 mV, 70 mA (5 avg), 30.0 C, 1361 mAh
[ 5.930633] batt: charging OFF [FULL]
[ 6.422637] mmc1: host does not support reading read-only switch. assuming write-enable.
[ 6.422851] mmc1: new high speed SDHC card at address 0007
[ 6.423675] mmcblk0: mmc1:0007 SD04G 3.73 GiB
[ 6.424133] mmcblk0: p1 p2 p3
[ 9.362518] cable_status_update: status=1
[ 9.385375] hsusb: OFFLINE -> ONLINE
[ 9.385650] hsusb: reset controller
[ 9.425354] msm_hsusb_phy_reset: success
[ 9.575347] ulpi: write 0x0c to 0x31
[ 9.575500] ulpi: write 0x31 to 0x32
[ 9.575653] ulpi: write 0x1d to 0x0d
[ 9.575897] ulpi: write 0x1d to 0x10
[ 9.576049] ept #0 out max:64 head:ffa02000 bit:0
[ 9.576202] ept #1 out max:512 head:ffa02080 bit:1
[ 9.576477] ept #2 out max:512 head:ffa02100 bit:2
[ 9.576629] ept #3 out max:512 head:ffa02180 bit:3
[ 9.576904] ept #0 in max:64 head:ffa02040 bit:16
[ 9.577056] ept #1 in max:512 head:ffa020c0 bit:17
[ 9.577331] ept #2 in max:512 head:ffa02140 bit:18
[ 9.577484] ept #3 in max:512 head:ffa021c0 bit:19
[ 9.577636] usb: notify offline
[ 9.577911] diag_configure() 0
[ 9.578063] msm_hsusb: enable pullup
[ 9.581359] usb: suspend
[ 9.715301] usb: reset
[ 9.717590] usb: portchange USB_SPEED_HIGH
[ 10.191284] usb: reset
[ 10.193542] usb: portchange USB_SPEED_HIGH
[ 10.366394] diag_configure() 1
[ 10.366546] ### notify_usb_connected(1) ###
[ 10.366790] usb_mass_storage usb_mass_storage: config #1
[ 11.330566] EXT3-fs warning: mounting fs with errors, running e2fsck is recommended
[ 11.330810] kjournald starting. Commit interval 5 seconds
[ 11.539764] EXT3 FS on mmcblk0p2, internal journal
[ 11.540039] EXT3-fs: recovery complete.
[ 11.750671] EXT3-fs: mounted filesystem with ordered data mode.
[ 11.750946] VFS: Mounted root (ext3 filesystem) on device 179:2.
[ 11.751434] Freeing init memory: 100K
[ 13.549499] udev: starting version 161
[ 13.959869] wifi_set_power = 1
[ 13.959869] mahimahi_wifi_power: 1
[ 14.318908] wifi_set_carddetect = 1
[ 14.318939] mahimahi_wifi_set_carddetect: 1
[ 14.318939] mmc0: card_present 1
[ 14.318939] mmc0: Slot status change detected (0 -> 1)
[ 14.322021]
[ 14.322021] Dongle Host Driver, version 4.218.161.0
[ 15.062774] msm_nand_read_oob: unsupported ops->len, 512
[ 15.062805] end_request: I/O error, dev mtdblock0, sector 0
[ 15.062835] Buffer I/O error on device mtdblock0, logical block 0
[ 15.062896] msm_nand_read_oob: unsupported ops->len, 512
[ 15.062896] end_request: I/O error, dev mtdblock0, sector 8
[ 15.062927] Buffer I/O error on device mtdblock0, logical block 1
[ 15.062927] msm_nand_read_oob: unsupported ops->len, 512
[ 15.062957] end_request: I/O error, dev mtdblock0, sector 16
[ 15.062957] Buffer I/O error on device mtdblock0, logical block 2
[ 15.062988] msm_nand_read_oob: unsupported ops->len, 512
[ 15.062988] end_request: I/O error, dev mtdblock0, sector 24
[ 15.063018] Buffer I/O error on device mtdblock0, logical block 3
[ 15.063018] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063049] end_request: I/O error, dev mtdblock0, sector 32
[ 15.063049] Buffer I/O error on device mtdblock0, logical block 4
[ 15.063079] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063079] end_request: I/O error, dev mtdblock0, sector 40
[ 15.063110] Buffer I/O error on device mtdblock0, logical block 5
[ 15.063110] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063140] end_request: I/O error, dev mtdblock0, sector 48
[ 15.063140] Buffer I/O error on device mtdblock0, logical block 6
[ 15.063171] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063171] end_request: I/O error, dev mtdblock0, sector 56
[ 15.063201] Buffer I/O error on device mtdblock0, logical block 7
[ 15.063201] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063232] end_request: I/O error, dev mtdblock0, sector 64
[ 15.063232] Buffer I/O error on device mtdblock0, logical block 8
[ 15.063262] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063262] end_request: I/O error, dev mtdblock0, sector 72
[ 15.063262] Buffer I/O error on device mtdblock0, logical block 9
[ 15.063293] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063293] end_request: I/O error, dev mtdblock0, sector 80
[ 15.063323] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063323] end_request: I/O error, dev mtdblock0, sector 88
[ 15.063354] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063354] end_request: I/O error, dev mtdblock0, sector 96
[ 15.063385] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063385] end_request: I/O error, dev mtdblock0, sector 104
[ 15.063415] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063415] end_request: I/O error, dev mtdblock0, sector 112
[ 15.063446] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063446] end_request: I/O error, dev mtdblock0, sector 120
[ 15.063476] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063476] end_request: I/O error, dev mtdblock0, sector 128
[ 15.063507] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063507] end_request: I/O error, dev mtdblock0, sector 136
[ 15.063537] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063537] end_request: I/O error, dev mtdblock0, sector 144
[ 15.063568] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063568] end_request: I/O error, dev mtdblock0, sector 152
[ 15.063598] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063598] end_request: I/O error, dev mtdblock0, sector 160
[ 15.063629] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063629] end_request: I/O error, dev mtdblock0, sector 168
[ 15.063659] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063659] end_request: I/O error, dev mtdblock0, sector 176
[ 15.063690] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063690] end_request: I/O error, dev mtdblock0, sector 184
[ 15.063720] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063720] end_request: I/O error, dev mtdblock0, sector 192
[ 15.063751] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063751] end_request: I/O error, dev mtdblock0, sector 200
[ 15.063781] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063781] end_request: I/O error, dev mtdblock0, sector 208
[ 15.063812] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063812] end_request: I/O error, dev mtdblock0, sector 216
[ 15.063842] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063842] end_request: I/O error, dev mtdblock0, sector 224
[ 15.063873] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063873] end_request: I/O error, dev mtdblock0, sector 232
[ 15.063903] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063903] end_request: I/O error, dev mtdblock0, sector 240
[ 15.063934] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063964] end_request: I/O error, dev mtdblock0, sector 248
[ 15.063964] msm_nand_read_oob: unsupported ops->len, 512
[ 15.063995] end_request: I/O error, dev mtdblock0, sector 0
[ 15.070983] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071014] end_request: I/O error, dev mtdblock1, sector 0
[ 15.071075] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071105] end_request: I/O error, dev mtdblock1, sector 8
[ 15.071105] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071136] end_request: I/O error, dev mtdblock1, sector 16
[ 15.071136] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071166] end_request: I/O error, dev mtdblock1, sector 24
[ 15.071166] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071197] end_request: I/O error, dev mtdblock1, sector 32
[ 15.071197] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071228] end_request: I/O error, dev mtdblock1, sector 40
[ 15.071228] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071258] end_request: I/O error, dev mtdblock1, sector 48
[ 15.071258] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071289] end_request: I/O error, dev mtdblock1, sector 56
[ 15.071289] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071319] end_request: I/O error, dev mtdblock1, sector 64
[ 15.071319] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071350] end_request: I/O error, dev mtdblock1, sector 72
[ 15.071350] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071380] end_request: I/O error, dev mtdblock1, sector 80
[ 15.071380] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071411] end_request: I/O error, dev mtdblock1, sector 88
[ 15.071411] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071441] end_request: I/O error, dev mtdblock1, sector 96
[ 15.071441] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071472] end_request: I/O error, dev mtdblock1, sector 104
[ 15.071472] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071502] end_request: I/O error, dev mtdblock1, sector 112
[ 15.071502] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071533] end_request: I/O error, dev mtdblock1, sector 120
[ 15.071533] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071563] end_request: I/O error, dev mtdblock1, sector 128
[ 15.071563] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071594] end_request: I/O error, dev mtdblock1, sector 136
[ 15.071594] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071624] end_request: I/O error, dev mtdblock1, sector 144
[ 15.071624] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071655] end_request: I/O error, dev mtdblock1, sector 152
[ 15.071655] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071685] end_request: I/O error, dev mtdblock1, sector 160
[ 15.071685] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071716] end_request: I/O error, dev mtdblock1, sector 168
[ 15.071716] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071746] end_request: I/O error, dev mtdblock1, sector 176
[ 15.071746] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071777] end_request: I/O error, dev mtdblock1, sector 184
[ 15.071777] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071807] end_request: I/O error, dev mtdblock1, sector 192
[ 15.071807] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071838] end_request: I/O error, dev mtdblock1, sector 200
[ 15.071838] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071868] end_request: I/O error, dev mtdblock1, sector 208
[ 15.071868] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071899] end_request: I/O error, dev mtdblock1, sector 216
[ 15.071899] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071929] end_request: I/O error, dev mtdblock1, sector 224
[ 15.071929] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071960] end_request: I/O error, dev mtdblock1, sector 232
[ 15.071960] msm_nand_read_oob: unsupported ops->len, 512
[ 15.071990] end_request: I/O error, dev mtdblock1, sector 240
[ 15.072021] msm_nand_read_oob: unsupported ops->len, 512
[ 15.072021] end_request: I/O error, dev mtdblock1, sector 248
[ 15.072052] msm_nand_read_oob: unsupported ops->len, 512
[ 15.072052] end_request: I/O error, dev mtdblock1, sector 0
[ 15.083251] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083282] end_request: I/O error, dev mtdblock2, sector 0
[ 15.083343] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083343] end_request: I/O error, dev mtdblock2, sector 8
[ 15.083374] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083404] end_request: I/O error, dev mtdblock2, sector 16
[ 15.083404] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083435] end_request: I/O error, dev mtdblock2, sector 24
[ 15.083435] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083465] end_request: I/O error, dev mtdblock2, sector 32
[ 15.083465] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083496] end_request: I/O error, dev mtdblock2, sector 40
[ 15.083496] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083526] end_request: I/O error, dev mtdblock2, sector 48
[ 15.083526] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083557] end_request: I/O error, dev mtdblock2, sector 56
[ 15.083557] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083587] end_request: I/O error, dev mtdblock2, sector 64
[ 15.083587] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083618] end_request: I/O error, dev mtdblock2, sector 72
[ 15.083618] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083648] end_request: I/O error, dev mtdblock2, sector 80
[ 15.083648] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083679] end_request: I/O error, dev mtdblock2, sector 88
[ 15.083679] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083709] end_request: I/O error, dev mtdblock2, sector 96
[ 15.083709] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083740] end_request: I/O error, dev mtdblock2, sector 104
[ 15.083740] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083770] end_request: I/O error, dev mtdblock2, sector 112
[ 15.083770] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083801] end_request: I/O error, dev mtdblock2, sector 120
[ 15.083801] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083831] end_request: I/O error, dev mtdblock2, sector 128
[ 15.083831] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083862] end_request: I/O error, dev mtdblock2, sector 136
[ 15.083862] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083892] end_request: I/O error, dev mtdblock2, sector 144
[ 15.083892] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083923] end_request: I/O error, dev mtdblock2, sector 152
[ 15.083923] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083953] end_request: I/O error, dev mtdblock2, sector 160
[ 15.083953] msm_nand_read_oob: unsupported ops->len, 512
[ 15.083984] end_request: I/O error, dev mtdblock2, sector 168
[ 15.083984] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084014] end_request: I/O error, dev mtdblock2, sector 176
[ 15.084014] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084045] end_request: I/O error, dev mtdblock2, sector 184
[ 15.084045] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084075] end_request: I/O error, dev mtdblock2, sector 192
[ 15.084075] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084106] end_request: I/O error, dev mtdblock2, sector 200
[ 15.084106] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084136] end_request: I/O error, dev mtdblock2, sector 208
[ 15.084136] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084167] end_request: I/O error, dev mtdblock2, sector 216
[ 15.084167] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084167] end_request: I/O error, dev mtdblock2, sector 224
[ 15.084197] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084197] end_request: I/O error, dev mtdblock2, sector 232
[ 15.084228] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084228] end_request: I/O error, dev mtdblock2, sector 240
[ 15.084259] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084289] end_request: I/O error, dev mtdblock2, sector 248
[ 15.084320] msm_nand_read_oob: unsupported ops->len, 512
[ 15.084320] end_request: I/O error, dev mtdblock2, sector 0
[ 15.093261] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093292] end_request: I/O error, dev mtdblock3, sector 0
[ 15.093353] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093383] end_request: I/O error, dev mtdblock3, sector 8
[ 15.093383] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093414] end_request: I/O error, dev mtdblock3, sector 16
[ 15.093414] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093444] end_request: I/O error, dev mtdblock3, sector 24
[ 15.093444] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093475] end_request: I/O error, dev mtdblock3, sector 32
[ 15.093475] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093505] end_request: I/O error, dev mtdblock3, sector 40
[ 15.093505] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093536] end_request: I/O error, dev mtdblock3, sector 48
[ 15.093536] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093566] end_request: I/O error, dev mtdblock3, sector 56
[ 15.093566] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093597] end_request: I/O error, dev mtdblock3, sector 64
[ 15.093597] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093627] end_request: I/O error, dev mtdblock3, sector 72
[ 15.093627] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093658] end_request: I/O error, dev mtdblock3, sector 80
[ 15.093658] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093688] end_request: I/O error, dev mtdblock3, sector 88
[ 15.093688] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093719] end_request: I/O error, dev mtdblock3, sector 96
[ 15.093719] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093750] end_request: I/O error, dev mtdblock3, sector 104
[ 15.093750] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093780] end_request: I/O error, dev mtdblock3, sector 112
[ 15.093780] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093811] end_request: I/O error, dev mtdblock3, sector 120
[ 15.093811] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093841] end_request: I/O error, dev mtdblock3, sector 128
[ 15.093841] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093872] end_request: I/O error, dev mtdblock3, sector 136
[ 15.093872] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093902] end_request: I/O error, dev mtdblock3, sector 144
[ 15.093902] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093933] end_request: I/O error, dev mtdblock3, sector 152
[ 15.093933] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093963] end_request: I/O error, dev mtdblock3, sector 160
[ 15.093963] msm_nand_read_oob: unsupported ops->len, 512
[ 15.093994] end_request: I/O error, dev mtdblock3, sector 168
[ 15.093994] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094024] end_request: I/O error, dev mtdblock3, sector 176
[ 15.094024] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094055] end_request: I/O error, dev mtdblock3, sector 184
[ 15.094055] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094085] end_request: I/O error, dev mtdblock3, sector 192
[ 15.094085] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094116] end_request: I/O error, dev mtdblock3, sector 200
[ 15.094116] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094146] end_request: I/O error, dev mtdblock3, sector 208
[ 15.094146] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094177] end_request: I/O error, dev mtdblock3, sector 216
[ 15.094177] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094207] end_request: I/O error, dev mtdblock3, sector 224
[ 15.094207] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094207] end_request: I/O error, dev mtdblock3, sector 232
[ 15.094238] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094238] end_request: I/O error, dev mtdblock3, sector 240
[ 15.094299] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094299] end_request: I/O error, dev mtdblock3, sector 248
[ 15.094329] msm_nand_read_oob: unsupported ops->len, 512
[ 15.094329] end_request: I/O error, dev mtdblock3, sector 0
[ 15.103424] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103454] end_request: I/O error, dev mtdblock4, sector 0
[ 15.103515] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103546] end_request: I/O error, dev mtdblock4, sector 8
[ 15.103546] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103576] end_request: I/O error, dev mtdblock4, sector 16
[ 15.103576] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103607] end_request: I/O error, dev mtdblock4, sector 24
[ 15.103607] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103637] end_request: I/O error, dev mtdblock4, sector 32
[ 15.103637] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103668] end_request: I/O error, dev mtdblock4, sector 40
[ 15.103698] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103698] end_request: I/O error, dev mtdblock4, sector 48
[ 15.103729] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103729] end_request: I/O error, dev mtdblock4, sector 56
[ 15.103759] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103759] end_request: I/O error, dev mtdblock4, sector 64
[ 15.103790] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103790] end_request: I/O error, dev mtdblock4, sector 72
[ 15.103820] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103820] end_request: I/O error, dev mtdblock4, sector 80
[ 15.103851] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103851] end_request: I/O error, dev mtdblock4, sector 88
[ 15.103881] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103881] end_request: I/O error, dev mtdblock4, sector 96
[ 15.103912] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103912] end_request: I/O error, dev mtdblock4, sector 104
[ 15.103942] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103942] end_request: I/O error, dev mtdblock4, sector 112
[ 15.103973] msm_nand_read_oob: unsupported ops->len, 512
[ 15.103973] end_request: I/O error, dev mtdblock4, sector 120
[ 15.104003] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104003] end_request: I/O error, dev mtdblock4, sector 128
[ 15.104034] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104034] end_request: I/O error, dev mtdblock4, sector 136
[ 15.104064] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104064] end_request: I/O error, dev mtdblock4, sector 144
[ 15.104095] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104095] end_request: I/O error, dev mtdblock4, sector 152
[ 15.104125] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104125] end_request: I/O error, dev mtdblock4, sector 160
[ 15.104156] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104156] end_request: I/O error, dev mtdblock4, sector 168
[ 15.104187] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104187] end_request: I/O error, dev mtdblock4, sector 176
[ 15.104217] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104217] end_request: I/O error, dev mtdblock4, sector 184
[ 15.104248] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104248] end_request: I/O error, dev mtdblock4, sector 192
[ 15.104248] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104278] end_request: I/O error, dev mtdblock4, sector 200
[ 15.104278] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104309] end_request: I/O error, dev mtdblock4, sector 208
[ 15.104309] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104339] end_request: I/O error, dev mtdblock4, sector 216
[ 15.104339] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104370] end_request: I/O error, dev mtdblock4, sector 224
[ 15.104370] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104400] end_request: I/O error, dev mtdblock4, sector 232
[ 15.104400] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104431] end_request: I/O error, dev mtdblock4, sector 240
[ 15.104461] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104461] end_request: I/O error, dev mtdblock4, sector 248
[ 15.104492] msm_nand_read_oob: unsupported ops->len, 512
[ 15.104492] end_request: I/O error, dev mtdblock4, sector 0
[ 15.111450] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111480] end_request: I/O error, dev mtdblock5, sector 0
[ 15.111541] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111541] end_request: I/O error, dev mtdblock5, sector 8
[ 15.111572] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111602] end_request: I/O error, dev mtdblock5, sector 16
[ 15.111602] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111633] end_request: I/O error, dev mtdblock5, sector 24
[ 15.111633] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111663] end_request: I/O error, dev mtdblock5, sector 32
[ 15.111663] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111694] end_request: I/O error, dev mtdblock5, sector 40
[ 15.111694] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111724] end_request: I/O error, dev mtdblock5, sector 48
[ 15.111724] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111755] end_request: I/O error, dev mtdblock5, sector 56
[ 15.111755] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111785] end_request: I/O error, dev mtdblock5, sector 64
[ 15.111785] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111816] end_request: I/O error, dev mtdblock5, sector 72
[ 15.111816] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111846] end_request: I/O error, dev mtdblock5, sector 80
[ 15.111846] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111877] end_request: I/O error, dev mtdblock5, sector 88
[ 15.111877] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111907] end_request: I/O error, dev mtdblock5, sector 96
[ 15.111907] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111938] end_request: I/O error, dev mtdblock5, sector 104
[ 15.111938] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111968] end_request: I/O error, dev mtdblock5, sector 112
[ 15.111968] msm_nand_read_oob: unsupported ops->len, 512
[ 15.111999] end_request: I/O error, dev mtdblock5, sector 120
[ 15.111999] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112030] end_request: I/O error, dev mtdblock5, sector 128
[ 15.112030] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112060] end_request: I/O error, dev mtdblock5, sector 136
[ 15.112060] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112091] end_request: I/O error, dev mtdblock5, sector 144
[ 15.112091] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112121] end_request: I/O error, dev mtdblock5, sector 152
[ 15.112121] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112152] end_request: I/O error, dev mtdblock5, sector 160
[ 15.112152] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112182] end_request: I/O error, dev mtdblock5, sector 168
[ 15.112182] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112213] end_request: I/O error, dev mtdblock5, sector 176
[ 15.112213] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112243] end_request: I/O error, dev mtdblock5, sector 184
[ 15.112243] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112274] end_request: I/O error, dev mtdblock5, sector 192
[ 15.112274] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112304] end_request: I/O error, dev mtdblock5, sector 200
[ 15.112304] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112335] end_request: I/O error, dev mtdblock5, sector 208
[ 15.112335] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112365] end_request: I/O error, dev mtdblock5, sector 216
[ 15.112365] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112396] end_request: I/O error, dev mtdblock5, sector 224
[ 15.112396] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112426] end_request: I/O error, dev mtdblock5, sector 232
[ 15.112426] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112426] end_request: I/O error, dev mtdblock5, sector 240
[ 15.112487] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112487] end_request: I/O error, dev mtdblock5, sector 248
[ 15.112518] msm_nand_read_oob: unsupported ops->len, 512
[ 15.112518] end_request: I/O error, dev mtdblock5, sector 0
[ 16.861083] mmc0: Command timeout
[ 16.877197] mmc0: queuing CIS tuple 0x91 length 3
[ 16.877227] mmc0: new high speed SDIO card at address 0001
[ 16.891784] DHD: dongle ram size is set to 294912(orig 294912)
[ 18.248382] eth0 (): not using net_device_ops yet
[ 18.251770] eth0: Broadcom Dongle Host Driver mac=00:23:76:b0:e4:74
[ 18.581176] rmnet_open()
[ 18.581329] SMD: ch 11 1 -> 2
[ 18.626190] rmnet_open()
[ 18.626281] SMD: ch 12 1 -> 2
[ 18.670959] rmnet_open()
[ 18.671081] SMD: ch 13 1 -> 2
[ 27.485321] dummy0: no IPv6 routers present
[ 28.765319] rmnet0: no IPv6 routers present
[ 28.775299] rmnet2: no IPv6 routers present
[ 29.085327] eth0: no IPv6 routers present
[ 29.415344] rmnet1: no IPv6 routers present
[ 30.035278] enabling adb function
[ 30.035461] hsusb: ONLINE -> RESET
[ 30.035461] hsusb: reset controller
[ 30.075317] msm_hsusb_phy_reset: success
[ 30.225280] ulpi: write 0x0c to 0x31
[ 30.225280] ulpi: write 0x31 to 0x32
[ 30.225280] ulpi: write 0x1d to 0x0d
[ 30.225311] ulpi: write 0x1d to 0x10
[ 30.225311] ept #0 out max:64 head:ffa02000 bit:0
[ 30.225311] ept #1 out max:512 head:ffa02080 bit:1
[ 30.225341] ept #2 out max:512 head:ffa02100 bit:2
[ 30.225341] ept #3 out max:512 head:ffa02180 bit:3
[ 30.225372] ept #0 in max:64 head:ffa02040 bit:16
[ 30.225372] ept #1 in max:512 head:ffa020c0 bit:17
[ 30.225372] ept #2 in max:512 head:ffa02140 bit:18
[ 30.225402] ept #3 in max:512 head:ffa021c0 bit:19
[ 30.225433] usb_ept_queue_xfer() tried to queue request while offline
[ 30.226043] usb_ept_queue_xfer() tried to queue request while offline
[ 30.226074] usb_mass_storage usb_mass_storage: error in submission: bulk-out –> -19
[ 30.226104] usb_ept_queue_xfer() tried to queue request while offline
[ 30.226104] usb: notify offline
[ 30.226135] diag_configure() 0
[ 30.226135] msm_hsusb: enable pullup
[ 30.226165] hsusb: RESET -> ONLINE
[ 30.227661] usb: reset
[ 30.249572] lcdc_unblank: ()
[ 30.249572] samsung_oled_panel_unblank: +()
[ 30.545593] samsung_oled_panel_unblank: -()
[ 31.369720] usb: portchange USB_SPEED_FULL
[ 31.371612] usb: reset
[ 31.467193] usb: portchange USB_SPEED_FULL
[ 31.470367] usb: suspend
[ 31.604187] usb: reset
[ 31.606445] usb: portchange USB_SPEED_HIGH
[ 32.092620] usb: reset
[ 32.094879] usb: portchange USB_SPEED_HIGH
[ 32.256317] diag_configure() 1
[ 32.256317] ### notify_usb_connected(1) ###
ps auxwwwf
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 2 0.0 0.0 0 0 ? S< 01:32 0:00 [kthreadd]
root 3 0.0 0.0 0 0 ? S< 01:32 0:00 _ [ksoftirqd/0]
root 4 0.0 0.0 0 0 ? S< 01:32 0:00 _ [watchdog/0]
root 5 0.0 0.0 0 0 ? S< 01:32 0:00 _ [events/0]
root 6 0.0 0.0 0 0 ? S< 01:32 0:00 _ [khelper]
root 7 0.0 0.0 0 0 ? S< 01:32 0:00 _ [suspend]
root 8 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kblockd/0]
root 9 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kmmcd]
root 10 0.0 0.0 0 0 ? S< 01:32 0:00 _ [bluetooth]
root 11 0.0 0.0 0 0 ? S< 01:32 0:00 _ [qmi]
root 12 0.0 0.0 0 0 ? D< 01:32 0:00 _ [rpcrouter]
root 13 0.0 0.0 0 0 ? S< 01:32 0:00 _ [krpcserversd]
root 14 0.0 0.0 0 0 ? S< 01:32 0:00 _ [dock]
root 15 0.0 0.0 0 0 ? S< 01:32 0:00 _ [detection/0]
root 16 0.0 0.0 0 0 ? S< 01:32 0:00 _ [button/0]
root 17 0.0 0.0 0 0 ? S 01:32 0:00 _ [pdflush]
root 18 0.0 0.0 0 0 ? S 01:32 0:00 _ [pdflush]
root 19 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kswapd0]
root 20 0.0 0.0 0 0 ? S< 01:32 0:00 _ [aio/0]
root 30 0.0 0.0 0 0 ? S< 01:32 0:00 _ [panel_on/0]
root 35 0.0 0.0 0 0 ? S< 01:32 0:00 _ [mtdblockd]
root 36 0.0 0.0 0 0 ? S< 01:32 0:00 _ [USB mass_storag]
root 37 0.0 0.0 0 0 ? S< 01:32 0:00 _ [synaptics_wq]
root 38 0.0 0.0 0 0 ? S< 01:32 0:00 _ [w1_bus_master1]
root 39 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kstriped]
root 40 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kondemand/0]
root 41 0.0 0.0 0 0 ? S< 01:32 0:00 _ [hid_compat]
root 44 0.0 0.0 0 0 ? S< 01:32 0:00 _ [krfcommd]
root 45 0.0 0.0 0 0 ? S< 01:32 0:00 _ [ds2784-battery.]
root 46 0.2 0.0 0 0 ? S< 01:32 0:05 _ [mmcqd]
root 47 0.0 0.0 0 0 ? S< 01:32 0:00 _ [kjournald]
root 215 0.0 0.0 0 0 ? S 01:32 0:00 _ [iscan_sysioc]
root 216 0.0 0.0 0 0 ? S 01:32 0:00 _ [dhcp_sysioc]
root 218 0.0 0.0 0 0 ? S 01:32 0:00 _ [dhd_watchdog]
root 219 0.0 0.0 0 0 ? S 01:32 0:00 _ [dhd_dpc]
root 220 0.0 0.0 0 0 ? S 01:32 0:00 _ [dhd_sysioc]
root 1 0.0 0.2 1760 616 ? Ss 01:32 0:00 init [5]
root 75 0.0 0.3 2052 664 ? S
root 213 0.0 0.3 2048 704 ? S< 01:32 0:00 _ /sbin/udevd -d
root 217 0.0 0.3 2048 676 ? S< 01:32 0:00 _ /sbin/udevd -d
dbus 111 0.0 0.5 2652 1188 ? Ss 01:32 0:00 dbus-daemon –system –fork
root 227 0.0 0.9 4264 2172 ? Ss 01:32 0:01 /usr/sbin/connmand -W nl80211,wext
root 230 0.0 0.2 1840 624 ? RNs 01:32 0:00 /sbin/syslogd -m 0
root 232 0.0 1.0 5336 2192 ? S 01:32 0:00 /sbin/wpa_supplicant -u
root 234 0.0 0.2 1760 452 ? SNs 01:32 0:00 /sbin/klogd -x
root 246 0.0 0.8 4484 1916 ? Ss 01:32 0:00 /usr/sbin/ofonod
root 248 0.0 0.6 3840 1500 ? Ss 01:32 0:00 /usr/sbin/bluetoothd
root 254 0.0 0.2 2856 632 ? S 01:32 0:00 /bin/bash /etc/rc.d/rc.sysinit
root 311 0.0 0.0 3352 168 ? Sl 01:32 0:00 _ /sbin/adbd
root 477 0.0 0.7 2840 1568 pts/0 Ss 01:51 0:00 _ /system/bin/sh -
root 1696 3.6 0.6 2740 1372 pts/0 S+ 02:02 0:00 _ /bin/bash /usr/bin/mcinfo
root 1844 0.0 0.4 2524 896 pts/0 R+ 02:02 0:00 _ ps auxwwwf
root 271 0.0 0.3 2740 828 ? S 01:32 0:00 /bin/sh /etc/rc5.d/S50sensord start
root 272 0.0 0.5 2732 1212 ? S 01:32 0:00 _ /bin/bash -c ulimit -S -c 0 >/dev/null 2>&1 ; /usr/sbin/sensord
root 273 0.0 2.2 45832 4828 ? Sl 01:32 0:00 _ /usr/sbin/sensord
root 276 0.0 1.8 9388 4096 ? S 01:32 0:00 /usr/bin/timed
root 283 0.0 0.4 5908 1076 ? Ss 01:32 0:00 /usr/sbin/sshd
root 289 0.0 0.2 1748 508 tty1 Ss+ 01:32 0:00 /sbin/mingetty –noclear tty1
meego 290 0.0 1.0 5264 2352 ? Ss 01:32 0:00 uxlaunch
root 292 0.0 0.1 3588 320 ? S 01:32 0:00 _ uxlaunch
root 310 0.0 6.2 26560 13652 tty2 Ss+ 01:32 0:01 _ /usr/bin/Xorg :0 -nolisten tcp -dpi 120 -noreset -auth /var/run/uxlaunch/Xauth-meego-LrfuNe vt2
meego 396 0.3 9.8 110428 21492 ? Sl 01:32 0:06 _ /usr/bin/duihome -software &
meego 399 0.0 3.0 27272 6704 ? SNl 01:32 0:01 _ /usr/bin/msyncd
meego 400 0.0 2.1 18300 4756 ? SN 01:32 0:00 _ corewatcher-applet
meego 401 0.0 1.4 19976 3220 ? SN 01:32 0:00 _ /usr/libexec/tracker-miner-fs
meego 320 0.0 0.3 4812 680 ? Ss 01:32 0:00 /usr/bin/ssh-agent
root 322 0.0 1.3 19736 2840 ? Sl 01:32 0:00 /usr/sbin/console-kit-daemon –no-daemon
meego 390 0.0 0.4 2672 928 ? Ss 01:32 0:00 dbus-daemon –fork –session –print-pid 9 –print-address 11
meego 393 0.0 0.8 7348 1764 ? S 01:32 0:00 /usr/libexec/gconfd-2
root 415 0.0 1.2 6588 2628 ? S 01:33 0:00 /usr/libexec/upowerd
meego 446 0.1 4.0 24628 8740 ? Sl 01:34 0:01 /usr/libexec/tracker-store
meego 449 0.0 1.2 25592 2828 ? Sl 01:34 0:00 /usr/libexec/tumblerd
fdisk -l
Disk /dev/mmcblk0: 4013 MB, 4013948928 bytes
124 heads, 62 sectors/track, 1019 cylinders
Units = cylinders of 7688 * 512 = 3936256 bytes
Disk identifier: 0x00029d6c
Device Boot Start End Blocks Id System
/dev/mmcblk0p1 1 131 503533 c W95 FAT32 (LBA)
/dev/mmcblk0p2 132 959 3182832 83 Linux
/dev/mmcblk0p3 960 1019 230640 82 Linux swap / Solaris
lsmod
Module Size Used by
bcm4329 167152 0
netstat -anp
Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:5037 0.0.0.0:* LISTEN 311/adbd
tcp 0 0 0.0.0.0:53 0.0.0.0:* LISTEN 227/connmand
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 283/sshd
tcp 0 0 :::22 :::* LISTEN 283/sshd
udp 0 0 0.0.0.0:53 0.0.0.0:* 227/connmand
Active UNIX domain sockets (servers and established)
Proto RefCnt Flags Type State I-Node PID/Program name Path
unix 2 [ ACC ] STREAM LISTENING 1578 320/ssh-agent /tmp/ssh-oxcfTRs319/agent.319
unix 2 [ ACC ] STREAM LISTENING 1556 311/adbd @jdwp-control
unix 2 [ ACC ] STREAM LISTENING 1676 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 2 [ ACC ] STREAM LISTENING 1080 248/bluetoothd /var/run/sdp
unix 2 [ ACC ] STREAM LISTENING 1083 248/bluetoothd @/org/bluez/audio
unix 2 [ ACC ] STREAM LISTENING 1549 310/Xorg @/tmp/.X11-unix/X0
unix 2 [ ] DGRAM 334 75/udevd @/org/kernel/udev/udevd
unix 2 [ ACC ] STREAM LISTENING 1450 273/sensord /tmp/sensord.sock
unix 2 [ ACC ] STREAM LISTENING 429 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 2 [ ACC ] STREAM LISTENING 1550 310/Xorg /tmp/.X11-unix/X0
unix 10 [ ] DGRAM 971 230/syslogd /dev/log
unix 3 [ ] STREAM CONNECTED 1915 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1914 449/tumblerd
unix 3 [ ] STREAM CONNECTED 1903 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1902 446/tracker-store
unix 3 [ ] STREAM CONNECTED 1890 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1889 401/tracker-miner-f
unix 3 [ ] STREAM CONNECTED 1790 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1789 415/upowerd
unix 3 [ ] STREAM CONNECTED 1785 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1784 415/upowerd
unix 3 [ ] STREAM CONNECTED 1772 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1771 399/msyncd
unix 3 [ ] STREAM CONNECTED 1750 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1749 396/duihome
unix 3 [ ] STREAM CONNECTED 1746 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1745 396/duihome
unix 3 [ ] STREAM CONNECTED 1738 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1737 399/msyncd
unix 3 [ ] STREAM CONNECTED 1736 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1735 399/msyncd
unix 3 [ ] STREAM CONNECTED 1733 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1732 396/duihome
unix 3 [ ] STREAM CONNECTED 1731 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1730 400/corewatcher-app
unix 3 [ ] STREAM CONNECTED 1729 310/Xorg @/tmp/.X11-unix/X0
unix 3 [ ] STREAM CONNECTED 1728 396/duihome
unix 3 [ ] STREAM CONNECTED 1725 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1724 400/corewatcher-app
unix 3 [ ] STREAM CONNECTED 1722 310/Xorg @/tmp/.X11-unix/X0
unix 3 [ ] STREAM CONNECTED 1721 400/corewatcher-app
unix 3 [ ] STREAM CONNECTED 1713 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1712 399/msyncd
unix 2 [ ] DGRAM 1710 399/msyncd
unix 3 [ ] STREAM CONNECTED 1691 390/dbus-daemon @/tmp/dbus-lqH3W1UFxE
unix 3 [ ] STREAM CONNECTED 1690 393/gconfd-2
unix 2 [ ] DGRAM 1689 393/gconfd-2
unix 3 [ ] STREAM CONNECTED 1678 390/dbus-daemon
unix 3 [ ] STREAM CONNECTED 1677 390/dbus-daemon
unix 3 [ ] STREAM CONNECTED 1619 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1618 322/console-kit-dae
unix 3 [ ] STREAM CONNECTED 1594 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1593 322/console-kit-dae
unix 3 [ ] STREAM CONNECTED 1581 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1580 290/uxlaunch
unix 3 [ ] STREAM CONNECTED 1566 311/adbd
unix 3 [ ] STREAM CONNECTED 1565 311/adbd
unix 3 [ ] STREAM CONNECTED 1560 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1559 276/timed
unix 3 [ ] STREAM CONNECTED 1554 311/adbd
unix 3 [ ] STREAM CONNECTED 1553 311/adbd
unix 2 [ ] DGRAM 1526 290/uxlaunch
unix 3 [ ] STREAM CONNECTED 1505 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1504 273/sensord
unix 2 [ ] DGRAM 1460 276/timed
unix 3 [ ] STREAM CONNECTED 1076 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1075 248/bluetoothd
unix 2 [ ] DGRAM 1074 248/bluetoothd
unix 3 [ ] STREAM CONNECTED 1067 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 1066 246/ofonod
unix 2 [ ] DGRAM 1065 246/ofonod
unix 2 [ ] DGRAM 1001 234/klogd
unix 2 [ ] DGRAM 992 227/connmand
unix 3 [ ] STREAM CONNECTED 942 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 937 232/wpa_supplicant
unix 3 [ ] STREAM CONNECTED 914 111/dbus-daemon /var/run/dbus/system_bus_socket
unix 3 [ ] STREAM CONNECTED 913 227/connmand
unix 3 [ ] STREAM CONNECTED 432 111/dbus-daemon
unix 3 [ ] STREAM CONNECTED 431 111/dbus-daemon
unix 3 [ ] DGRAM 339 75/udevd
unix 3 [ ] DGRAM 338 75/udevd
ifconfig -a
dummy0 Link encap:Ethernet HWaddr D6:65:36:E9:1E:68
inet6 addr: fe80::d465:36ff:fee9:1e68/64 Scope:Link
UP BROADCAST RUNNING NOARP MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:3160 (3.0 KiB)
eth0 Link encap:Ethernet HWaddr 00:23:76:B0:E4:74
inet6 addr: fe80::223:76ff:feb0:e474/64 Scope:Link
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:12 errors:0 dropped:0 overruns:0 frame:0
TX packets:6 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:696 (696.0 b) TX bytes:492 (492.0 b)
ip6tnl0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
NOARP MTU:1460 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:4 errors:0 dropped:0 overruns:0 frame:0
TX packets:4 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:200 (200.0 b) TX bytes:200 (200.0 b)
rmnet0 Link encap:Ethernet HWaddr FE:6C:09:1E:0E:AF
inet6 addr: fe80::fc6c:9ff:fe1e:eaf/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:11 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 b) TX bytes:3418 (3.3 KiB)
rmnet1 Link encap:Ethernet HWaddr D2:67:6D:C2:54:7B
inet6 addr: fe80::d067:6dff:fec2:547b/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:11 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 b) TX bytes:3418 (3.3 KiB)
rmnet2 Link encap:Ethernet HWaddr CE:70:76:84:1E:DC
inet6 addr: fe80::cc70:76ff:fe84:1edc/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:11 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 b) TX bytes:3418 (3.3 KiB)
sit0 Link encap:IPv6-in-IPv4
NOARP MTU:1480 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)
/proc/cmdline
board_mahimahi.disable_uart3=0 board_mahimahi.usb_h2w_sw=0 board_mahimahi.disable_sdcard=0 diag.enabled=0 board_mahimahi.debug_uart=0 smisize=0 androidboot.baseband=4.06.00.12_7 androidboot.cid=GOOGL001 androidboot.carrier=GOOGLE androidboot.mid=PB9910000 androidboot.keycaps=qwerty androidboot.mode=normal androidboot.serialno=HT015P803993 androidboot.bootloader=0.33.0012 init=/sbin/init rootwait root=/dev/mmcblk0p2 rootfstype=ext3 rw
/proc/cpuinfo
Processor : ARMv7 Processor rev 2 (v7l)
BogoMIPS : 509.54
Features : swp half thumb fastmult vfp edsp thumbee neon
CPU implementer : 0x51
CPU architecture: 7
CPU variant : 0x0
CPU part : 0x00f
CPU revision : 2
Hardware : mahimahi
Revision : 0081
Serial : 0000000000000000
/proc/devices
Character devices:
1 mem
4 /dev/vc/0
4 tty
5 /dev/tty
5 /dev/console
5 /dev/ptmx
7 vcs
10 misc
13 input
29 fb
81 video4linux
90 mtd
108 ppp
128 ptm
136 pts
216 rfcomm
250 msm_camera
251 ttyHS
252 vdec
253 oncrpc
254 smd
Block devices:
259 blkext
7 loop
31 mtdblock
179 mmc
254 device-mapper
/proc/diskstats
31 0 mtdblock0 27 54 648 0 0 0 0 0 0 0 0
31 1 mtdblock1 27 54 648 0 0 0 0 0 0 0 0
31 2 mtdblock2 27 54 648 0 0 0 0 0 0 0 0
31 3 mtdblock3 27 54 648 60 0 0 0 0 0 60 60
31 4 mtdblock4 27 54 648 0 0 0 0 0 0 0 0
31 5 mtdblock5 27 54 648 0 0 0 0 0 0 0 0
179 0 mmcblk0 3377 482 173140 28640 1433 4379 46496 1985690 0 153170 2014310
179 1 mmcblk0p1 14 173 386 400 0 0 0 0 0 160 400
179 2 mmcblk0p2 3344 247 172106 28170 1433 4379 46496 1985690 0 153110 2013840
179 3 mmcblk0p3 10 31 328 30 0 0 0 0 0 30 30
/proc/interrupts
CPU0
0: 98 msm smd_dev
1: 0 msm debug
5: 21373 msm smsm_dev
7: 15778 msm gp_timer
8: 0 msm dg_timer
19: 3 msm msm_mdp
20: 0 msm kgsl
21: 8929 msm msmdatamover
22: 0 msm smd_dsp
24: 943 msm msm-sdcc (cmd)
25: 300 msm msm-sdcc (pio)
26: 9727 msm msm-sdcc (cmd)
27: 1 msm msm-sdcc (pio)
34: 127630 msm msm_i2c
58: 14545 msm msm_hsusb
108: 1 msmgpio gpio_event_axis
122: 0 msmgpio microp_interrupt
124: 1 msmgpio gpio_event_axis
125: 1 msmgpio gpio_event_axis
127: 0 msmgpio gpio_kp
128: 0 msmgpio gpio_kp
129: 0 msmgpio gpio_kp
173: 1 msmgpio bt host_wake
177: 1 msmgpio capella_cm3602
179: 2 msmgpio synaptics-rmi-ts
181: 1 msmgpio gpio_keys
226: 1 msmgpio debug-wakeup
232: 1 msmgpio gpio_event_axis
239: 137 msmgpio bcmsdh_sdmmc
240: 0 msmgpio akm8973
Err: 0
/proc/meminfo
MemTotal: 217720 kB
MemFree: 80744 kB
Buffers: 7376 kB
Cached: 83612 kB
SwapCached: 0 kB
Active: 64388 kB
Inactive: 59896 kB
Active(anon): 33436 kB
Inactive(anon): 0 kB
Active(file): 30952 kB
Inactive(file): 59896 kB
Unevictable: 0 kB
Mlocked: 0 kB
SwapTotal: 0 kB
SwapFree: 0 kB
Dirty: 2044 kB
Writeback: 0 kB
AnonPages: 33316 kB
Mapped: 27632 kB
Slab: 9300 kB
SReclaimable: 6000 kB
SUnreclaim: 3300 kB
PageTables: 912 kB
NFS_Unstable: 0 kB
Bounce: 0 kB
WritebackTmp: 0 kB
CommitLimit: 108860 kB
Committed_AS: 178684 kB
VmallocTotal: 688128 kB
VmallocUsed: 88748 kB
VmallocChunk: 565244 kB
/proc/mounts
rootfs / rootfs rw 0 0
/dev/root / ext3 rw,errors=continue,data=ordered 0 0
/proc /proc proc rw 0 0
/sys /sys sysfs rw 0 0
none /dev tmpfs rw,mode=755 0 0
none /dev/pts devpts rw,gid=5,mode=620 0 0
tmpfs /var/lock tmpfs rw,size=4096k 0 0
tmpfs /var/run tmpfs rw,size=4096k 0 0
tmpfs /dev/shm tmpfs rw 0 0
tmpfs /home/meego/.mozilla tmpfs rw,size=20480k 0 0
none /sys/kernel/debug debugfs rw 0 0
/proc/partitions
major minor #blocks name
31 0 896 mtdblock0
31 1 5120 mtdblock1
31 2 2560 mtdblock2
31 3 148480 mtdblock3
31 4 97280 mtdblock4
31 5 200960 mtdblock5
179 0 3919872 mmcblk0
179 1 503533 mmcblk0p1
179 2 3182832 mmcblk0p2
179 3 230640 mmcblk0p3
/var/log/Xorg.0.log
[ 25.917]
X.Org X Server 1.9.0
Release Date: 2010-08-20
[ 25.917] X Protocol Version 11, Revision 0
[ 25.917] Build Operating System: Linux 2.6.31.14-0.1-desktop armv7l
[ 25.917] Current Operating System: Linux localhost.localdomain 2.6.29-01118-ga971bfd #21 PREEMPT Sun Oct 31 10:08:45 JST 2010 armv7l
[ 25.918] Kernel command line: board_mahimahi.disable_uart3=0 board_mahimahi.usb_h2w_sw=0 board_mahimahi.disable_sdcard=0 diag.enabled=0 board_mahimahi.debug_uart=0 smisize=0 androidboot.baseband=4.06.00.12_7 androidboot.cid=GOOGL001 androidboot.carrier=GOOGLE androidboot.mid=PB9910000 androidboot.keycaps=qwerty androidboot.mode=normal androidboot.serialno=HT015P803993 androidboot.bootloader=0.33.0012 init=/sbin/init rootwait root=/dev/mmcblk0p2 rootfstype=ext3 rw
[ 25.918] Build Date: 01 October 2010 11:46:43AM
[ 25.918] Build ID: xorg-x11-server 1.9.0-4.5
[ 25.918] Current version of pixman: 0.18.2
[ 25.918] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 25.918] Markers: (–) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 25.919] (==) Log file: “/var/log/Xorg.0.log”, Time: Sat Oct 30 01:32:57 2010
[ 26.348] (==) Using config directory: “/etc/X11/xorg.conf.d”
[ 26.349] (==) No Layout section. Using the first Screen section.
[ 26.349] (==) No screen section available. Using defaults.
[ 26.349] (**) |–>Screen “Default Screen Section” (0)
[ 26.349] (**) | |–>Monitor ""
[ 26.350] (==) No monitor specified for screen “Default Screen Section”.
Using a default monitor configuration.
[ 26.351] (==) Automatically adding devices
[ 26.351] (==) Automatically enabling devices
[ 26.351] (==) FontPath set to:
catalogue:/etc/X11/fontpath.d,
built-ins
[ 26.351] (==) ModulePath set to “/usr/lib/xorg/modules”
[ 26.351] (II) The server relies on udev to provide the list of input devices.
If no devices become available, reconfigure udev or disable AutoAddDevices.
[ 26.351] (II) Loader magic: 0x19a8e4
[ 26.351] (II) Module ABI versions:
[ 26.351] X.Org ANSI C Emulation: 0.4
[ 26.351] X.Org Video Driver: 8.0
[ 26.351] X.Org XInput driver : 11.0
[ 26.351] X.Org Server Extension : 4.0
[ 26.352] (II) LoadModule: “extmod”
[ 26.587] (II) Loading /usr/lib/xorg/modules/extensions/libextmod.so
[ 26.588] (II) Module extmod: vendor=“X.Org Foundation”
[ 26.588] compiled for 1.9.0, module version = 1.0.0
[ 26.588] Module class: X.Org Server Extension
[ 26.588] ABI class: X.Org Server Extension, version 4.0
[ 26.588] (II) Loading extension MIT-SCREEN-SAVER
[ 26.588] (II) Loading extension XFree86-VidModeExtension
[ 26.589] (II) Loading extension XFree86-DGA
[ 26.589] (II) Loading extension DPMS
[ 26.589] (II) Loading extension XVideo
[ 26.589] (II) Loading extension XVideo-MotionCompensation
[ 26.589] (II) Loading extension X-Resource
[ 26.589] (II) LoadModule: “dbe”
[ 26.591] (II) Loading /usr/lib/xorg/modules/extensions/libdbe.so
[ 26.592] (II) Module dbe: vendor=“X.Org Foundation”
[ 26.592] compiled for 1.9.0, module version = 1.0.0
[ 26.592] Module class: X.Org Server Extension
[ 26.592] ABI class: X.Org Server Extension, version 4.0
[ 26.593] (II) Loading extension DOUBLE-BUFFER
[ 26.593] (II) LoadModule: “glx”
[ 26.595] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 26.596] (II) Module glx: vendor=“X.Org Foundation”
[ 26.596] compiled for 1.9.0, module version = 1.0.0
[ 26.596] ABI class: X.Org Server Extension, version 4.0
[ 26.596] (==) AIGLX enabled
[ 26.597] (II) Loading extension GLX
[ 26.597] (II) LoadModule: “record”
[ 26.599] (II) Loading /usr/lib/xorg/modules/extensions/librecord.so
[ 26.600] (II) Module record: vendor=“X.Org Foundation”
[ 26.600] compiled for 1.9.0, module version = 1.13.0
[ 26.601] Module class: X.Org Server Extension
[ 26.601] ABI class: X.Org Server Extension, version 4.0
[ 26.601] (II) Loading extension RECORD
[ 26.601] (II) LoadModule: “dri”
[ 26.603] (II) Loading /usr/lib/xorg/modules/extensions/libdri.so
[ 26.605] (II) Module dri: vendor=“X.Org Foundation”
[ 26.605] compiled for 1.9.0, module version = 1.0.0
[ 26.605] ABI class: X.Org Server Extension, version 4.0
[ 26.605] (II) Loading extension XFree86-DRI
[ 26.605] (II) LoadModule: “dri2”
[ 26.608] (II) Loading /usr/lib/xorg/modules/extensions/libdri2.so
[ 26.609] (II) Module dri2: vendor=“X.Org Foundation”
[ 26.609] compiled for 1.9.0, module version = 1.2.0
[ 26.609] ABI class: X.Org Server Extension, version 4.0
[ 26.609] (II) Loading extension DRI2
[ 26.609] Primary device is not PCI
[ 26.609] (==) Matched fbdev as autoconfigured driver 0
[ 26.609] (==) Assigned the driver to the xf86ConfigLayout
[ 26.609] (II) LoadModule: “fbdev”
[ 26.614] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 26.615] (II) Module fbdev: vendor=“X.Org Foundation”
[ 26.615] compiled for 1.9.0, module version = 0.4.1
[ 26.615] ABI class: X.Org Video Driver, version 8.0
[ 26.615] (II) FBDEV: driver for framebuffer: fbdev
[ 26.615] (++) using VT number 2
[ 26.616] (WW) Falling back to old probe method for fbdev
[ 26.616] (II) Loading sub module “fbdevhw”
[ 26.616] (II) LoadModule: “fbdevhw”
[ 26.618] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so
[ 26.641] (II) Module fbdevhw: vendor=“X.Org Foundation”
[ 26.641] compiled for 1.9.0, module version = 0.0.2
[ 26.641] ABI class: X.Org Video Driver, version 8.0
[ 26.642] (II) FBDEV(0): using default device
[ 26.642] (WW) VGA arbiter: cannot open kernel arbiter, no multi-card support
[ 26.642] (II) FBDEV(0): Creating default Display subsection in Screen section
"Default Screen Section" for depth/fbbpp 16/16
[ 26.642] (==) FBDEV(0): Depth 16, (==) framebuffer bpp 16
[ 26.643] (==) FBDEV(0): RGB weight 565
[ 26.643] (==) FBDEV(0): Default visual is TrueColor
[ 26.647] (==) FBDEV(0): Using gamma correction (1.0, 1.0, 1.0)
[ 26.648] (II) FBDEV(0): hardware: msmfb (video memory: 4500kB)
[ 26.648] (II) FBDEV(0): checking modes against framebuffer device…
[ 26.648] (II) FBDEV(0): checking modes against monitor…
[ 26.648] (–) FBDEV(0): Virtual size is 480x800 (pitch 480)
[ 26.648] (**) FBDEV(0): Built-in mode “current”
[ 26.648] (++) FBDEV(0): DPI set to (120, 120)
[ 26.648] (II) Loading sub module “fb”
[ 26.648] (II) LoadModule: “fb”
[ 26.650] (II) Loading /usr/lib/xorg/modules/libfb.so
[ 26.659] (II) Module fb: vendor=“X.Org Foundation”
[ 26.659] compiled for 1.9.0, module version = 1.0.0
[ 26.659] ABI class: X.Org ANSI C Emulation, version 0.4
[ 26.659] (**) FBDEV(0): using shadow framebuffer
[ 26.660] (II) Loading sub module “shadow”
[ 26.660] (II) LoadModule: “shadow”
[ 26.663] (II) Loading /usr/lib/xorg/modules/libshadow.so
[ 26.666] (II) Module shadow: vendor=“X.Org Foundation”
[ 26.667] compiled for 1.9.0, module version = 1.1.0
[ 26.667] ABI class: X.Org ANSI C Emulation, version 0.4
[ 26.667] (EE) FBDEV(0): FBIOBLANK: Invalid argument
[ 27.016] (==) FBDEV(0): Backing store disabled
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.017] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.018] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.019] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.020] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.021] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.022] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (EE) FBDEV(0): FBIOPUTCMAP: Invalid argument
[ 27.023] (==) FBDEV(0): DPMS enabled
[ 27.026] (==) RandR enabled
[ 27.026] (II) Initializing built-in extension Generic Event Extension
[ 27.026] (II) Initializing built-in extension SHAPE
[ 27.026] (II) Initializing built-in extension MIT-SHM
[ 27.026] (II) Initializing built-in extension XInputExtension
[ 27.026] (II) Initializing built-in extension XTEST
[ 27.026] (II) Initializing built-in extension BIG-REQUESTS
[ 27.026] (II) Initializing built-in extension SYNC
[ 27.026] (II) Initializing built-in extension XKEYBOARD
[ 27.026] (II) Initializing built-in extension XC-MISC
[ 27.027] (II) Initializing built-in extension XFIXES
[ 27.027] (II) Initializing built-in extension RENDER
[ 27.027] (II) Initializing built-in extension RANDR
[ 27.027] (II) Initializing built-in extension COMPOSITE
[ 27.027] (II) Initializing built-in extension DAMAGE
[ 27.088] (II) AIGLX: Screen 0 is not DRI2 capable
[ 27.088] (II) AIGLX: Screen 0 is not DRI capable
[ 27.183] (II) AIGLX: Loaded and initialized /usr/lib/dri/swrast_dri.so
[ 27.183] (II) GLX: Initialized DRISWRAST GL provider for screen 0
[ 27.277] (II) XKB: reuse xkmfile /var/cache/xkb/server-B20D7FC79C7F597315E3E501AEF10E0D866E8E92.xkm
[ 27.405] (II) config/udev: Adding input device lightsensor-level (/dev/event0)
[ 27.406] (**) lightsensor-level: Applying InputClass “default”
[ 27.406] (II) LoadModule: “evdev”
[ 27.408] (II) Loading /usr/lib/xorg/modules/input/evdev_drv.so
[ 27.412] (II) Module evdev: vendor=“X.Org Foundation”
[ 27.412] compiled for 1.9.0, module version = 2.4.99
[ 27.412] Module class: X.Org XInput Driver
[ 27.412] ABI class: X.Org XInput driver, version 11.0
[ 27.412] (**) lightsensor-level: always reports core events
[ 27.413] (**) lightsensor-level: Device: “/dev/event0”
[ 27.413] (–) lightsensor-level: Found absolute axes
[ 27.413] (II) lightsensor-level: Configuring as mouse
[ 27.413] (II) XINPUT: Adding extended input device “lightsensor-level” (type: MOUSE)
[ 27.414] (II) lightsensor-level: initialized for absolute axes.
[ 27.416] (II) config/udev: Adding input device h2w headset (/dev/event1)
[ 27.416] (**) h2w headset: Applying InputClass “default”
[ 27.416] (**) h2w headset: always reports core events
[ 27.416] (**) h2w headset: Device: “/dev/event1”
[ 27.417] (–) h2w headset: Found keys
[ 27.417] (II) h2w headset: Configuring as keyboard
[ 27.417] (II) XINPUT: Adding extended input device “h2w headset” (type: KEYBOARD)
[ 27.417] (**) Option “xkb_rules” “evdev”
[ 27.417] (**) Option “xkb_model” “evdev”
[ 27.417] (**) Option “xkb_layout” “us”
[ 27.438] (II) XKB: reuse xkmfile /var/cache/xkb/server-D378AD8F86E560F712A83EE36E4E5E92C595B9BD.xkm
[ 27.445] (II) config/udev: Adding input device synaptics-rmi-touchscreen (/dev/event2)
[ 27.445] (**) synaptics-rmi-touchscreen: Applying InputClass “default”
[ 27.446] (**) synaptics-rmi-touchscreen: always reports core events
[ 27.446] (**) synaptics-rmi-touchscreen: Device: “/dev/event2”
[ 27.446] (–) synaptics-rmi-touchscreen: Found 3 mouse buttons
[ 27.446] (–) synaptics-rmi-touchscreen: Found absolute axes
[ 27.446] (–) synaptics-rmi-touchscreen: Found x and y absolute axes
[ 27.446] (–) synaptics-rmi-touchscreen: Found absolute touchscreen
[ 27.446] (II) synaptics-rmi-touchscreen: Configuring as touchscreen
[ 27.446] (**) synaptics-rmi-touchscreen: YAxisMapping: buttons 4 and 5
[ 27.447] (**) synaptics-rmi-touchscreen: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
[ 27.447] (II) XINPUT: Adding extended input device “synaptics-rmi-touchscreen” (type: TOUCHSCREEN)
[ 27.447] (II) synaptics-rmi-touchscreen: initialized for absolute axes.
[ 27.449] (II) config/udev: Adding input device mahimahi-keypad (/dev/event3)
[ 27.449] (**) mahimahi-keypad: Applying InputClass “default”
[ 27.450] (**) mahimahi-keypad: always reports core events
[ 27.450] (**) mahimahi-keypad: Device: “/dev/event3”
[ 27.450] (–) mahimahi-keypad: Found keys
[ 27.450] (II) mahimahi-keypad: Configuring as keyboard
[ 27.450] (II) XINPUT: Adding extended input device “mahimahi-keypad” (type: KEYBOARD)
[ 27.450] (**) Option “xkb_rules” “evdev”
[ 27.450] (**) Option “xkb_model” “evdev”
[ 27.450] (**) Option “xkb_layout” “us”
[ 27.453] (II) config/udev: Adding input device mahimahi-nav (/dev/event4)
[ 27.453] (**) mahimahi-nav: Applying InputClass “default”
[ 27.454] (**) mahimahi-nav: always reports core events
[ 27.454] (**) mahimahi-nav: Device: “/dev/event4”
[ 27.454] (–) mahimahi-nav: Found 1 mouse buttons
[ 27.454] (–) mahimahi-nav: Found relative axes
[ 27.454] (–) mahimahi-nav: Found x and y relative axes
[ 27.454] (II) mahimahi-nav: Configuring as mouse
[ 27.454] (**) mahimahi-nav: YAxisMapping: buttons 4 and 5
[ 27.454] (**) mahimahi-nav: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
[ 27.454] (II) XINPUT: Adding extended input device “mahimahi-nav” (type: MOUSE)
[ 27.455] (**) mahimahi-nav: (accel) keeping acceleration scheme 1
[ 27.455] (**) mahimahi-nav: (accel) acceleration profile 0
[ 27.455] (**) mahimahi-nav: (accel) acceleration factor: 2.000
[ 27.455] (**) mahimahi-nav: (accel) acceleration threshold: 4
[ 27.455] (II) mahimahi-nav: initialized for relative axes.
[ 27.457] (II) config/udev: Adding input device proximity (/dev/event5)
[ 27.458] (**) proximity: Applying InputClass “default”
[ 27.458] (**) proximity: always reports core events
[ 27.458] (**) proximity: Device: “/dev/event5”
[ 27.458] (–) proximity: Found absolute axes
[ 27.458] (II) proximity: Configuring as mouse
[ 27.458] (II) XINPUT: Adding extended input device “proximity” (type: MOUSE)
[ 27.458] (II) proximity: initialized for absolute axes.
[ 27.460] (II) config/udev: Adding input device compass (/dev/event6)
[ 27.461] (**) compass: Applying InputClass “default”
[ 27.461] (**) compass: always reports core events
[ 27.461] (**) compass: Device: “/dev/event6”
[ 27.461] (–) compass: Found absolute axes
[ 27.461] (–) compass: Found x and y absolute axes
[ 27.461] (II) compass: Configuring as mouse
[ 27.462] (II) XINPUT: Adding extended input device “compass” (type: MOUSE)
[ 27.462] (II) compass: initialized for absolute axes.
[ 27.593] (EE) FBDEV(0): FBIOBLANK: Invalid argument
[ 627.616] (EE) FBDEV(0): FBIOBLANK: Invalid argument
[ 627.617] (EE) FBDEV(0): FBIOBLANK: Invalid argument
[ 627.618] (EE) FBDEV(0): FBIOBLANK: Invalid argument
Thank you.
